9.9DMH (1989)
Lower Casing & Drive 1

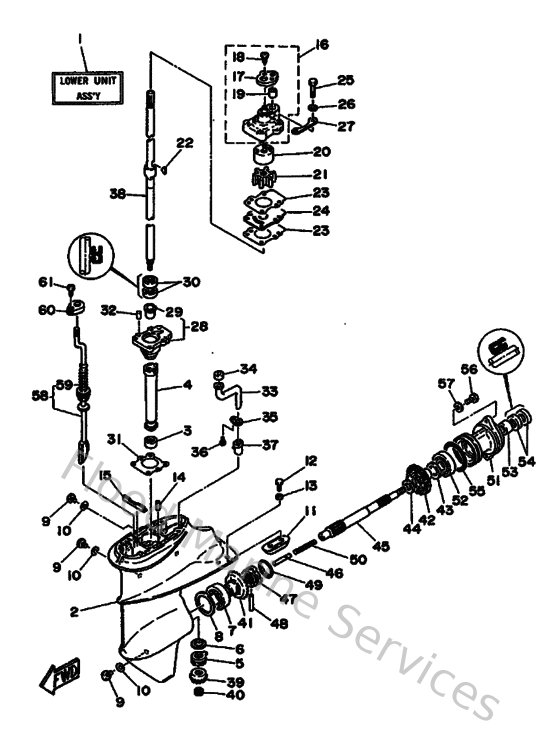

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
4
6E7455360000
Sleeve, drive shaft
Loading…
↗
5
93341214U100
Bearing, thrust (6e7)
Loading…
↗
6
6E7455870110
Shim 3
Loading…
↗
7
933320000500
Brg,cyl-cal roller 0.19g nt
Loading…
↗
8
664455676000
Shim (t:0.50mm)
Loading…
↗
9
903400800200
Plug, straight screw
Loading…
↗
10
904300802000
Gasket
Loading…
↗
11
6E0452511100
Anode
Loading…
↗
12
970950601600
Bolt, hexagon deep recess
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
15
682453760100
Guide, seal damper
Loading…
↗
16
682443000100
Housing water pump assembly
Loading…
↗
17
682443120000
Cover, water pump housing
Loading…
↗
18
977804011200
Screw, pan head tapping
Loading…
↗
19
682443650000
Damper, water seal 1
Loading…
↗
20
682443220000
Insert, cartridge
Loading…
↗
21
682443520100
Impeller
Loading…
↗
22
902800302400
Key, woodruff(662)
Loading…
↗
23
682443150000
Gasket,water pump 1
Loading…
↗
24
682443230000
Outer plate, cartridge
Loading…
↗
25
973950604000
Bolt (682)
Loading…
↗
27
682443280000
Plate
Loading…
↗
28
6E74533100CA
Housing, bearing
Loading…
↗
29
626453160900
Bushing, drive shaft 1
Loading…
↗
30
931012004800
Oil seal (20x30x6-648)
Loading…
↗
31
683453150000
Packing,lower casing
Loading…
↗
32
936061201900
Pin, dowel (614)
Loading…
↗
33
683443620100
Tube, water 2
Loading…
↗
34
683443650100
Damper, water seal 1
Loading…
↗
35
683443730000
Set plate, water tube
Loading…
↗
36
973950601000
Bolt
Loading…
↗
37
6E7443660000
Damper, water seal 2
Loading…
↗
38
6E7455010000
Drive shaft comp.
Loading…
↗
39
6E7455510000
Pinion
Loading…
↗
40
9017908M0600
Nut (6e7)
Loading…
↗
41
6E7455600100
Gear
Loading…
↗
42
6E7455710000
Gear 2
Loading…
↗
43
626455774000
Shim (t:0.50mm)
Loading…
↗
44
902011768200
Washer, plate (2k7)
Loading…
↗
45
683456110000
Shaft propeller
Loading…
↗
47
682456310000
Clutch, dog
Loading…
↗
48
902500501000
Pin straight 648456320000
Loading…
↗
49
648456330000
Ring, cross pin
Loading…
↗
50
9050114M0600
Spring, compression
Loading…
↗
51
999990223000
Cap, lower casing set (683)
Loading…
↗
52
933060050100
Bearing(1ff)
Loading…
↗
53
93315317U200
Brg,cyl-cal roller 14g (683)
Loading…
↗
54
931011705400
Oil seal (17x30x6-650)
Loading…
↗
55
9321057M0900
O-ring (683)
Loading…
↗
58
682441501000
Shift Cam Assembly
Loading…
↗
59
682441470000
Boot, shift rod
Loading…
↗
60
682441760000
Bracket
Loading…
↗
61
977805051000
Screw, tapping(6u1)
Loading…
↗
