90AETOL (2001)
Lower Casing & Drive 1

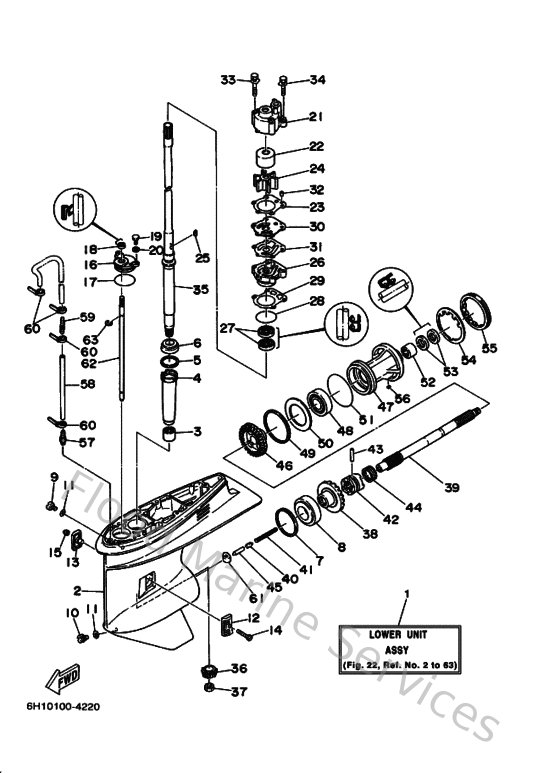

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
1
6H145300A34D
Lower Unit assembly
Loading…
↗
2
6H145301124D
Lower casing set
Loading…
↗
3
93315325V100
Bearing, needle (688)
Loading…
↗
4
688455360100
Sleeve, drive shaft
Loading…
↗
5
688455870130
Shim (t:0.30mm)
Loading…
↗
6
93332000U300
Brg,tapered roller 50mm (688)
Loading…
↗
7
688455676000
Shim (t:0.50mm)
Loading…
↗
8
93332000W700
Bearing(6b0)
Loading…
↗
9
9034008M0400
Plug, straight screw
Loading…
↗
10
688453410000
Plug, drain
Loading…
↗
11
904300802000
Gasket
Loading…
↗
12
6H1452140000
Cover, water inlet
Loading…
↗
13
6H1452150000
Cover, water inlet
Loading…
↗
14
9015105M0000
Screw, countersunk(692)
Loading…
↗
15
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
16
688453210000
Plate
Loading…
↗
17
932104904600
O-ring (620)
Loading…
↗
18
931060901400
Oil seal
Loading…
↗
19
970950601600
Bolt, hexagon deep recess
Loading…
↗
20
929900660000
Washer, plain (646)
Loading…
↗
21
688443110100
Housing, water pump 1
Loading…
↗
22
688443220000
Insert, cartridge
Loading…
↗
23
68844315A000
Gasket,water pump 1
Loading…
↗
24
688443520300
Impeller
Loading…
↗
25
9028004M0400
Key, woodruff (688)
Loading…
↗
26
6D8WS4430000
Housing, water pump set
Loading…
↗
27
9310125M0300
Oil seal
Loading…
↗
28
932104604400
O-ring
Loading…
↗
29
68844316A000
Gasket,water pump 2
Loading…
↗
30
688443230000
Outer plate, cartridge
Loading…
↗
31
68844324A000
Gasket,cartridge 0uter plate
Loading…
↗
32
9360410M0300
Pin, dowel (688)
Loading…
↗
33
9011908M1600
Bolt, with washer(6h0)
Loading…
↗
34
9011908M1300
Bolt, with washer(6h0)
Loading…
↗
35
6H1455011100
Drive shaft comp.
Loading…
↗
36
688455510100
Pinion
Loading…
↗
37
9017016M0100
Nut, hexagon (688)
Loading…
↗
38
688455600000
Gear 1 (26t)
Loading…
↗
39
688456110000
Shaft, propeller
Loading…
↗
40
688456340000
Slide, shift
Loading…
↗
41
905011623300
Spring compression(663)
Loading…
↗
42
688456310100
Clutch, dog
Loading…
↗
43
9025007M0200
Pin, straight (688)
Loading…
↗
44
688456330000
Ping, cross pin
Loading…
↗
45
688456350000
Plunger, shift
Loading…
↗
46
688455710100
Gear 2 (26t)
Loading…
↗
47
688453310094
Housing, bearing
Loading…
↗
48
93306207U000
Brg,r-b 6207 72mm 280g (688)
Loading…
↗
49
688455776000
Shim (t:0.50mm)
Loading…
↗
50
688455760000
Washer, thrust 2
Loading…
↗
51
9321085M9700
O-ring(6h1)
Loading…
↗
52
93317325U000
Brg,needle
Loading…
↗
54
688453830200
Washer, claw
Loading…
↗
55
688453840200
Nut
Loading…
↗
56
902820401000
Key, strait(663)
Loading…
↗
57
6E5453780000
Nipple, hose
Loading…
↗
58
9044507ME900
Hose (l250)
Loading…
↗
59
6E5835581000
End, nipple
Loading…
↗
60
904651009800
Clamp
Loading…
↗
61
663441510000
Cam, shift
Loading…
↗
62
663441440100
Rod, shift 2
Loading…
↗
63
934300800600
Circlip(2r6)
Loading…
↗
