D150HETO (2001)
Lower Casing & Drive 1

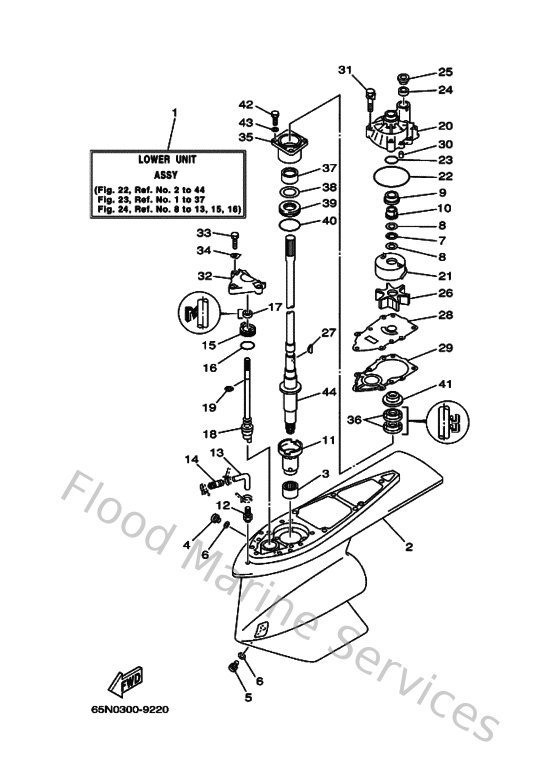

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
1
65N4530001NA
Lower unit assembly
Loading…
↗
2
65N4530100NA
Casing, Lower
Loading…
↗
3
93315628U900
Brg,cyl-cal roller (6e5)
Loading…
↗
4
9034008M0400
Plug, straight screw
Loading…
↗
5
688453410000
Plug, drain
Loading…
↗
6
904300800300
Gasket
Loading…
↗
7
9020622M1900
Washer, wave(61a)
Loading…
↗
8
9020122M0100
Washer, plate(61a)
Loading…
↗
9
61A455270000
Collar, drive shaft
Loading…
↗
10
61A455380000
Spacer, 1
Loading…
↗
11
65N455360000
Sleeve, Drive Shaft
Loading…
↗
12
6E5453780000
Nipple, hose
Loading…
↗
13
9044507ME800
Hose (l250)
Loading…
↗
14
6E5835581000
End, nipple
Loading…
↗
15
65N453210000
Plate
Loading…
↗
16
9321033M4900
O-ring(6l5)
Loading…
↗
17
931060901400
Oil seal
Loading…
↗
18
65N441500000
Shift Cam assembly
Loading…
↗
19
934300800600
Circlip(2r6)
Loading…
↗
20
61A443110100
Housing, water pump
Loading…
↗
21
61A443220200
Insert, cartridge
Loading…
↗
22
9321086M3800
O-ring (6e5)
Loading…
↗
23
932103716000
O-ring (6g8)
Loading…
↗
24
6E5443650000
Damper, water seal 1
Loading…
↗
25
6E5443120000
Cover, water pump housing
Loading…
↗
26
6E5443520100
Impeller
Loading…
↗
27
9028004M0500
Key, woodruff (6e5)
Loading…
↗
28
65N443230000
Outer plate, cartridge
Loading…
↗
29
65N44315A000
Gasket, water pump
Loading…
↗
30
936061201900
Pin, dowel (614)
Loading…
↗
31
9011908M1400
Bolt, with washer
Loading…
↗
32
65N443120000
Cover, Water Pump Housing
Loading…
↗
33
970950803500
Bolt(70w)
Loading…
↗
34
9020908M0200
Washer, plate (688)
Loading…
↗
35
6E5453310094
Housing, bearing
Loading…
↗
36
9310128M1600
Oil seal (6e5)
Loading…
↗
37
93315430V500
Bearing, cylindrical(6k0)
Loading…
↗
38
6E5455876000
Shim (t:0.50mm)
Loading…
↗
39
93341930V200
Bearing, thrust(64d)
Loading…
↗
40
932105453400
O-ring (70e)
Loading…
↗
41
6E5453440000
Cover, oil seal
Loading…
↗
42
970950802500
Bolt (62g)
Loading…
↗
43
929950860000
Washer, plain (663)
Loading…
↗
44
65N455010000
Drive Shaft Comp
Loading…
↗
