F6BMH (2001)
Lower Casing & Drive 1

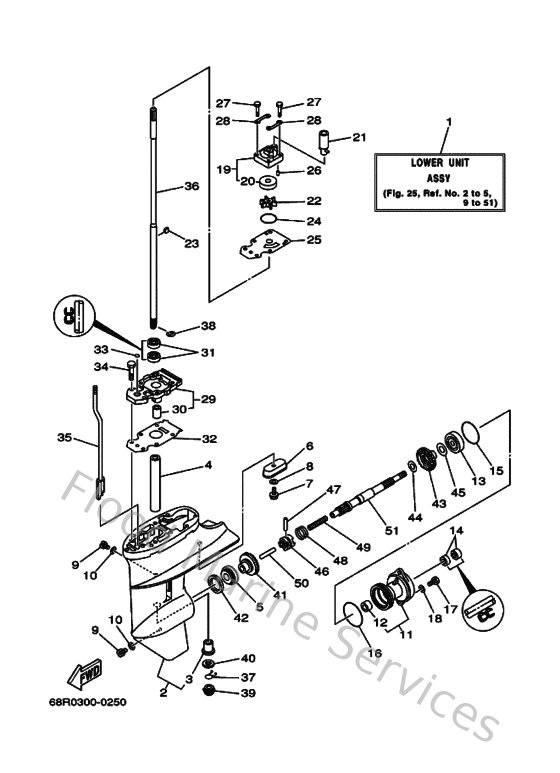

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
1
68T45300004D
Lower unit assembly
Loading…
↗
2
60RG5311004D
Casing, lower
Loading…
↗
3
6G1453170900
Bushing, drive shaft 2
Loading…
↗
4
9038714M4900
Collar (6g1)
Loading…
↗
5
93306004U000
Bearing (7k2)
Loading…
↗
6
68T452510000
Anode
Loading…
↗
7
958950601600
Bolt, flange deep recess
Loading…
↗
8
929900630000
Washer, tooth
Loading…
↗
9
9034008M0400
Plug, straight screw
Loading…
↗
10
904300800300
Gasket
Loading…
↗
11
6G145361014D
Cap, lower casing
Loading…
↗
12
6G1453620900
Bushing, lower casing cap
Loading…
↗
13
933060042300
Bearing (7k2)
Loading…
↗
14
931011507400
Oil seal (655)
Loading…
↗
15
932104904600
O-ring (620)
Loading…
↗
16
9321053M0800
O-ring(50m)
Loading…
↗
17
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
63V443010000
Water pump housing comp.
Loading…
↗
20
63V443220000
Insert, cartridge
Loading…
↗
21
68T443660000
Damper, water seal 2
Loading…
↗
22
68T443520000
Impeller
Loading…
↗
23
664443380000
Key, woodruff
Loading…
↗
24
932104439800
O-ring(55x)
Loading…
↗
25
68T443230000
Outer plate, cartridge
Loading…
↗
26
9360412M0700
Pin, dowel (688)
Loading…
↗
27
970800804500
Bolt, hexagon
Loading…
↗
28
63V443280000
Plate
Loading…
↗
29
68T45331005B
Housing, bearing
Loading…
↗
30
6G1453160900
Bushing, drive shaft 1
Loading…
↗
31
9310111M2300
Oil seal (6g1)
Loading…
↗
32
68T45315A000
Packing, lower casing
Loading…
↗
33
9321006ME600
O-ring
Loading…
↗
34
970800802500
Screw, bind(j36)
Loading…
↗
35
68T441500000
Shift cam assembly
Loading…
↗
36
6AU455111000
Shaft, drive
Loading…
↗
37
9046709M0500
Clip (6g1)
Loading…
↗
38
934300701200
Circlip(6l2)
Loading…
↗
39
68T455510000
Pinion
Loading…
↗
40
6G1455333000
Shim (t:2.2mm)
Loading…
↗
41
68T455600000
Gear
Loading…
↗
42
664455870130
Shim (t:0.30mm)
Loading…
↗
43
68T455710000
Gear
Loading…
↗
44
9020115M8900
Washer, plate (6g1)
Loading…
↗
45
647455670000
Shim, gear adjust
Loading…
↗
46
68T456310000
Clutch, dog
Loading…
↗
47
6G1456320000
Cross, pin
Loading…
↗
48
654456330000
Ring, cross pin
Loading…
↗
49
9050112M0500
Spring, compression
Loading…
↗
50
6G1456350000
Plunger, shift
Loading…
↗
51
68T456110000
Shaft, propeller
Loading…
↗
