F80AET (2000)
Lower Casing & Drive 1

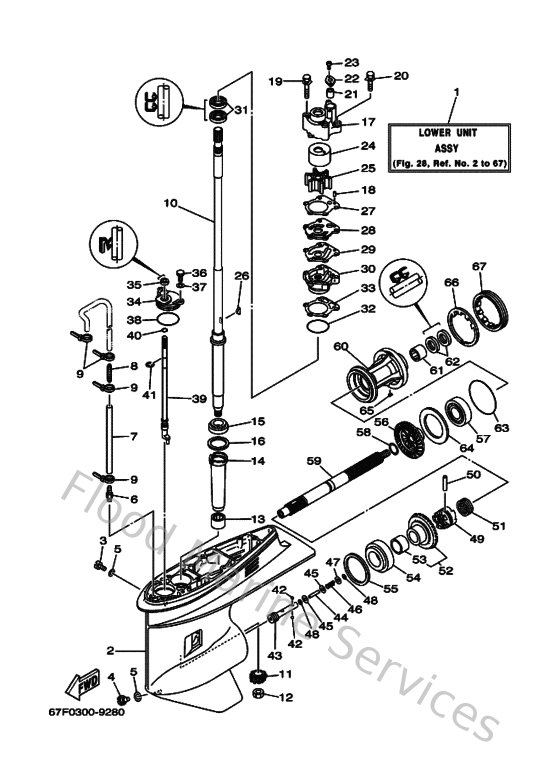

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
1
67F45300104D
Lower unit assembly
Loading…
↗
2
67F45301004D
Casing, lower
Loading…
↗
3
9034008M0400
Plug, straight screw
Loading…
↗
4
688453411000
Plug, drain
Loading…
↗
5
904300802000
Gasket
Loading…
↗
6
6E5453780000
Nipple, hose
Loading…
↗
7
9044507MF100
Hose (l570)
Loading…
↗
8
6E5835581000
End, nipple
Loading…
↗
9
904651009800
Clamp
Loading…
↗
10
67F455011000
Drive shaft comp.
Loading…
↗
11
999990402900
Pinion & gear set (6d9)
Loading…
↗
12
9017016M0100
Nut, hexagon (688)
Loading…
↗
13
93315325W400
Bearing
Loading…
↗
14
688455360100
Sleeve, drive shaft
Loading…
↗
15
93332000U300
Brg,tapered roller 50mm (688)
Loading…
↗
16
688455876000
Shim (t:0.50mm)
Loading…
↗
17
67F443110000
Housing, water pump
Loading…
↗
18
9360410M0300
Pin, dowel (688)
Loading…
↗
19
9011908M8700
Bolt, with washer
Loading…
↗
20
9011908M1300
Bolt, with washer(6h0)
Loading…
↗
21
663443660000
Damper, water seal 2
Loading…
↗
22
9048019M0600
Grommet (688)
Loading…
↗
23
977804051200
Screw, pan head tapping
Loading…
↗
24
67F443220000
Insert, cartridge
Loading…
↗
25
67F443520000
Impeller
Loading…
↗
26
9028004M0400
Key, woodruff (688)
Loading…
↗
27
68844315A000
Gasket,water pump 1
Loading…
↗
28
67F443230000
Outer plate, cartridge
Loading…
↗
29
68844324A000
Gasket,cartridge 0uter plate
Loading…
↗
30
6D8WS4430000
Housing, water pump set
Loading…
↗
31
9310125M0300
Oil seal
Loading…
↗
32
932104604400
O-ring
Loading…
↗
33
68844316A000
Gasket,water pump 2
Loading…
↗
34
688453210000
Plate
Loading…
↗
35
931060901400
Oil seal
Loading…
↗
36
970950601600
Bolt, hexagon deep recess
Loading…
↗
37
929900660000
Washer, plain (646)
Loading…
↗
38
932104904600
O-ring (620)
Loading…
↗
39
67F441500000
Shift cam assembly
Loading…
↗
40
932100700300
O-ring (11m)
Loading…
↗
41
990010860000
Circlip(2r6)
Loading…
↗
42
935031600300
Ball
Loading…
↗
43
67F456340000
Slide, shift
Loading…
↗
44
6H1456680000
Shaft, free 1
Loading…
↗
45
6H1456350000
Plunger, shift
Loading…
↗
46
9050112M4800
Spring (6h1)
Loading…
↗
47
902010331300
Washer, plate 8077743700
Loading…
↗
48
9018302M0300
Nut, spring (6h1)
Loading…
↗
49
67F456310000
Clutch, dog
Loading…
↗
50
9025007M0200
Pin, straight (688)
Loading…
↗
51
688456330000
Ping, cross pin
Loading…
↗
52
67F455600000
Gear 1 (30T)
Loading…
↗
53
93317322V000
Bearing
Loading…
↗
54
93332000UD00
Bearing
Loading…
↗
55
688455670110
Shim (t:0.10mm)
Loading…
↗
56
67F455710000
Gear
Loading…
↗
57
93306207U000
Brg,r-b 6207 72mm 280g (688)
Loading…
↗
58
9020125M0500
Washer, plate
Loading…
↗
59
67F456110000
Shaft, propeller
Loading…
↗
60
67F453310094
Housing, bearing
Loading…
↗
61
93317325U000
Brg,needle
Loading…
↗
63
9321086M3900
O-ring (6e5)
Loading…
↗
64
67F455760000
Washer, thrust 2
Loading…
↗
65
902820401000
Key, strait(663)
Loading…
↗
66
688453830200
Washer, claw
Loading…
↗
67
688453840000
Nut
Loading…
↗
