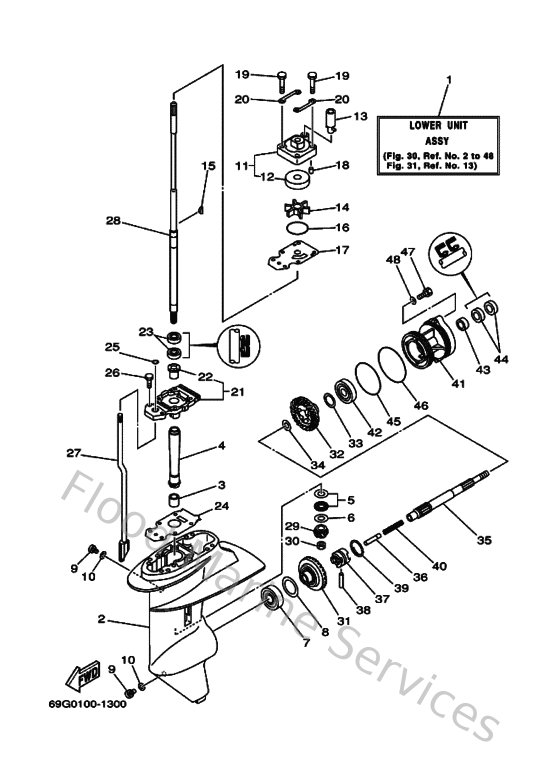

Diagram: Lower Casing & Drive 1

Diagram

Parts List

Reference
Description
Price


1
69G45300104D
Lower unit assembly
Loading…

↗
2
66R45311014D
Casing, lower
Loading…

↗
3
93315314V800
Bearing, needle (6e7)
Loading…

↗
4
66R455360000
Sleeve, drive shaft
Loading…

↗
5
93341414V100
Bearing
Loading…

↗
6
6E8455873000
Shim (t:1.20mm)
Loading…

↗
7
933320000500
Brg,cyl-cal roller 0.19g nt
Loading…

↗
8
626455774000
Shim (t:0.50mm)
Loading…

↗
9
903400800200
Plug, straight screw
Loading…

↗
10
904300802000
Gasket
Loading…

↗
11
63V443010000
Water pump housing comp.
Loading…

↗
12
63V443220000
Insert, cartridge
Loading…

↗
13
68T443660000
Damper, water seal 2
Loading…

↗
14
63V443520100
Impeller
Loading…

↗
15
664443380000
Key, woodruff
Loading…

↗
16
932104439800
O-ring(55x)
Loading…

↗
17
68T443230000
Outer plate, cartridge
Loading…

↗
18
9360412M0700
Pin, dowel (688)
Loading…

↗
19
970800804500
Bolt, hexagon
Loading…

↗
20
63V443280000
Plate
Loading…

↗
21
69G4533101CA
Housing, bearing
Loading…

↗
22
903811402000
Bushing, drive shaft 1
Loading…

↗
23
931022048400
Oil seal
Loading…

↗
24
69G45315A000
Packing, lower casing
Loading…

↗
25
9321006ME600
O-ring
Loading…

↗
26
970800802500
Screw, bind(j36)
Loading…

↗
27
69G441501000
Shift cam assembly
Loading…

↗
28
69G455101000
Drive shaft assembly
Loading…

↗
29
66R455510000
Pinion
Loading…

↗
30
9017908M0600
Nut (6e7)
Loading…

↗
31
66R455600000
Gear
Loading…

↗
32
66R455710000
Gear
Loading…

↗
33
626455770001
Shim (t:0.10mm)
Loading…

↗
34
902011768200
Washer, plate (2k7)
Loading…

↗
35
683456110000
Shaft propeller
Loading…

↗
36
650456350000
Plunger, shift
Loading…

↗
37
69G456310000
Clutch, dog
Loading…

↗
38
902500501000
Pin straight 648456320000
Loading…

↗
39
648456331100
Ring, cross pin
Loading…

↗
40
9050114M0900
Spring, compression
Loading…

↗
41
66R45361004D
Cap, lower casing
Loading…

↗
42
933060051900
Bearing(1ff)
Loading…

↗
43
93315317U200
Brg,cyl-cal roller 14g (683)
Loading…

↗
44
931011705400
Oil seal (17x30x6-650)
Loading…

↗
45
9321074M6800
O-ring (6g8)
Loading…

↗
46
932107431600
O-ring (1j7)
Loading…

↗
47
970950602500
Bolt
Loading…

↗
48
929950660000
Washer, plain (646)
Loading…

↗
