Yamaha Outboard Parts - Lower Casing & Drive 2 - 115BETO (1996) | Flood Marine

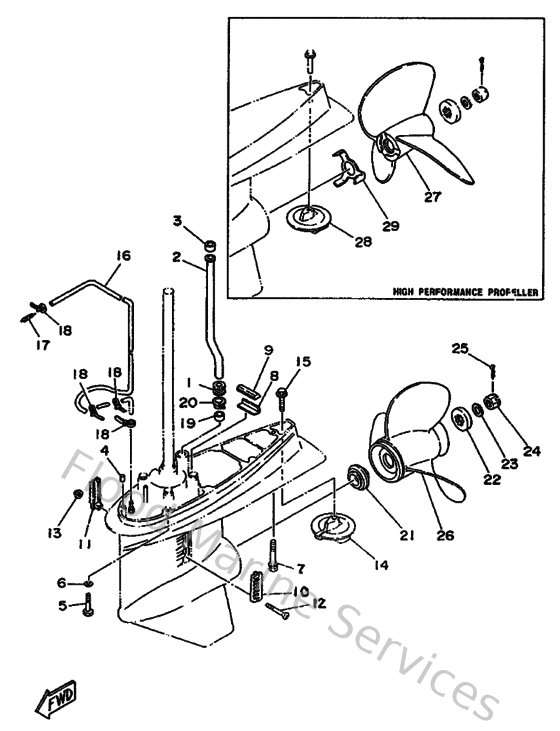

Diagram: Lower Casing & Drive 2

Diagram

Parts List

Reference
Description
Price


1
6E5443660000
Damper, water seal 2
Loading…

↗
2
6E5443610000
Tube, water
Loading…

↗
3
6E5443650000
Damper, water seal 1
Loading…

↗
4
9360812M0500
Pin, dowel b (6e5)
Loading…

↗
5
970751004500
Bolt(64d)
Loading…

↗
6
929901010000
Ybs67-10 washer, spring
Loading…

↗
7
9011910M8900
Bolt, with washer
Loading…

↗
8
663453760094
Guide, seal damper
Loading…

↗
9
688453750000
Damper, seal 2
Loading…

↗
10
688452140200
Cover, water inlet
Loading…

↗
11
688452150200
Cover, water inlet
Loading…

↗
12
9014205M0300
Screw, countersunk
Loading…

↗
13
901850590400
Nut nylon (sus)(ex4)
Loading…

↗
14
6E5453710100
Trim tab
Loading…

↗
15
9010510M0000
Bolt, hexagon (663)
Loading…

↗
16
9044507MF000
Hose (l1160)
Loading…

↗
17
6E5835580000
End, nipple
Loading…

↗
18
904651009800
Clamp
Loading…

↗
20
6E5443120000
Cover, water pump housing
Loading…

↗
21
6E5459870100
Spacer 1
Loading…

↗
22
688459970100
Spacer 2
Loading…

↗
23
929901820000
Washer (6e5)
Loading…

↗
24
9017118M0400
Nut, castle (6e5)
Loading…

↗
25
914904003000
Pin, cotter (663)
Loading…

↗
26
6E54594500EL
Propeller (3x13-1/4x17-k)
Loading…

↗
27
6E5459781000
Propeller assembly (3x14"x26"-p)
Loading…

↗
28
6E5453711000
Tab-trim
Loading…

↗
29
6E5459941000
Plate, tooth
Loading…

↗
