20CMH (1993)
Lower Casing & Drive 2

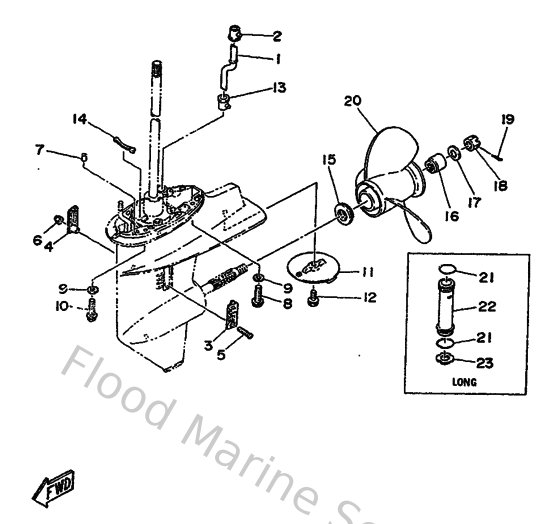

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
664443610000
Tube, water 1
Loading…
↗
2
689443660000
Damper, water seal 2
Loading…
↗
3
689452140100
Cover, water inlet 1
Loading…
↗
4
689452150100
Cover Water Inlet 2
Loading…
↗
5
986800552500
Ybs53-525 screw,flat head
Loading…
↗
6
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
7
936061201900
Pin, dowel (614)
Loading…
↗
8
901051005900
Bolt washer based (664)
Loading…
↗
9
929901060000
Washer, plate
Loading…
↗
10
9010510M1200
Bolt (689)
Loading…
↗
11
664453710100
Tab-trim
Loading…
↗
12
9010508M0200
Bolt hexagon
Loading…
↗
13
626443650100
Damper, water seal 1
Loading…
↗
14
689443140000
Spacer
Loading…
↗
15
664459870100
Spacer
Loading…
↗
16
689459970000
Spacer
Loading…
↗
17
929901420000
Washer, plain
Loading…
↗
18
901711401300
Nut(664)
Loading…
↗
19
914903003000
Pin, cotter
Loading…
↗
20
664459520000
Propeller (3x9-7/8 x14 -f)
Loading…
↗
21
932102624000
O-ring
Loading…
↗
22
689443620094
Tube, Water 2
Loading…
↗
23
689443280300
Plate
Loading…
↗
