225BETOL (1992)
Lower Casing & Drive 2

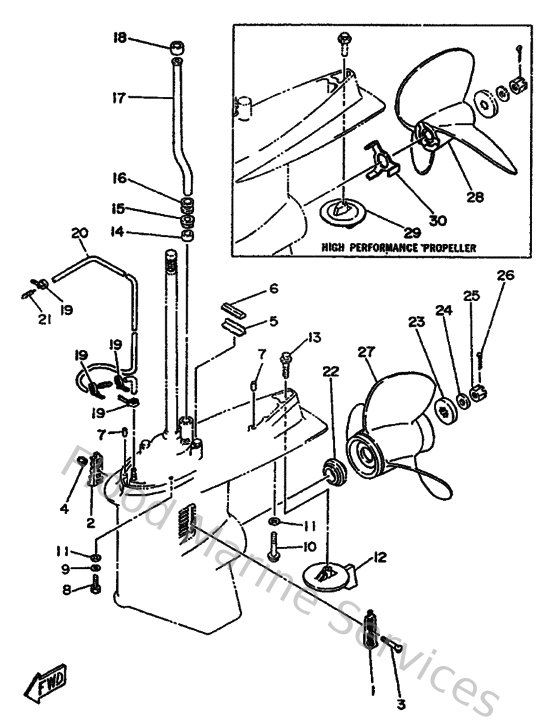

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
6J9452140000
Cover, water inlet
Loading…
↗
2
6J9452150000
Cover, water inlet
Loading…
↗
3
9014205M0400
Screw, countersunk
Loading…
↗
4
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
5
663453760000
Guide, seal damper
Loading…
↗
7
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
8
973951004500
Bolt(64d)
Loading…
↗
9
929901010000
Ybs67-10 washer, spring
Loading…
↗
10
9011910M8900
Bolt, with washer
Loading…
↗
11
929901060000
Washer, plate
Loading…
↗
12
6J9453710100
Tab-trim
Loading…
↗
13
9010510M0000
Bolt, hexagon (663)
Loading…
↗
14
6E5443650000
Damper, water seal 1
Loading…
↗
15
6E5443120000
Cover, water pump housing
Loading…
↗
16
6E5443660000
Damper, water seal 2
Loading…
↗
17
6E5443610000
Tube, water
Loading…
↗
19
904651009800
Clamp
Loading…
↗
20
9044507MF000
Hose (l1160)
Loading…
↗
21
6E5835580000
End, nipple
Loading…
↗
22
6E5459870000
Spacer 1
Loading…
↗
23
688459970100
Spacer 2
Loading…
↗
24
929901820000
Washer (6e5)
Loading…
↗
25
9017118M0400
Nut, castle (6e5)
Loading…
↗
26
914904003000
Pin, cotter (663)
Loading…
↗
27
6G5459490000
Propeller (3x13-1/2"x23"-m)
Loading…
↗
28
6E5459781000
Propeller assembly (3x14"x26"-p)
Loading…
↗
29
6E5453711000
Tab-trim
Loading…
↗
30
6E5459941000
Plate, tooth
Loading…
↗
