Yamaha Outboard Parts - Lower Casing & Drive 2 - 25BMH (2001) | Flood Marine

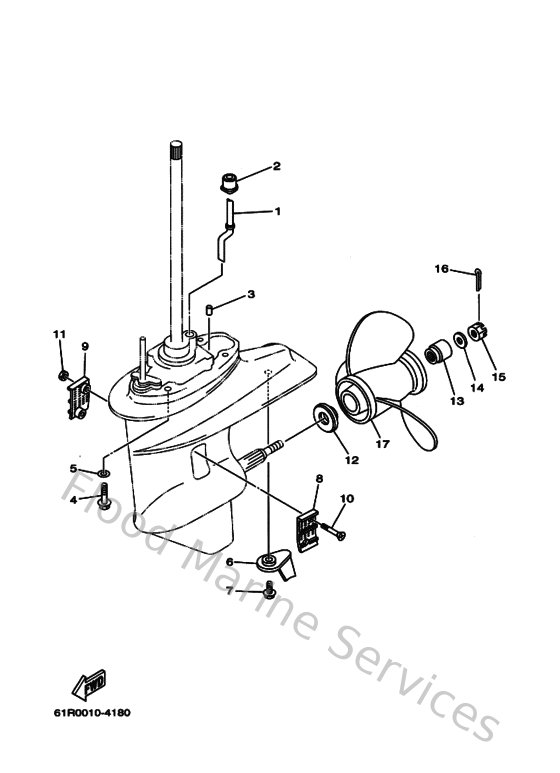

Diagram: Lower Casing & Drive 2

Diagram

Parts List

Reference
Description
Price


1
61N443610000
Tube, water
Loading…

↗
2
689443660000
Damper, water seal 2
Loading…

↗
3
9360611M2400
Pin, dowel
Loading…

↗
4
9010510M1200
Bolt (689)
Loading…

↗
5
929951060000
Washer, plate
Loading…

↗
6
61N453710000
Tab-trim
Loading…

↗
7
9011906M4800
Bolt, with washer(61n)
Loading…

↗
8
6L2452140000
Cover, water inlet
Loading…

↗
9
6L2452150000
Cover, water inlet
Loading…

↗
10
9015105M0500
Screw, countersunk
Loading…

↗
11
901850500200
Nut nylon (sus)(ex4)
Loading…

↗
12
6L2459870100
Spacer
Loading…

↗
13
689459970000
Spacer
Loading…

↗
14
929901420000
Washer, plain
Loading…

↗
15
901711401300
Nut(664)
Loading…

↗
16
914903003000
Pin, cotter
Loading…

↗
17
62C4594100EL
Propeller (3x9-7/8 x10 -f)
Loading…

↗
