30DETO (1992)
Lower Casing & Drive 2

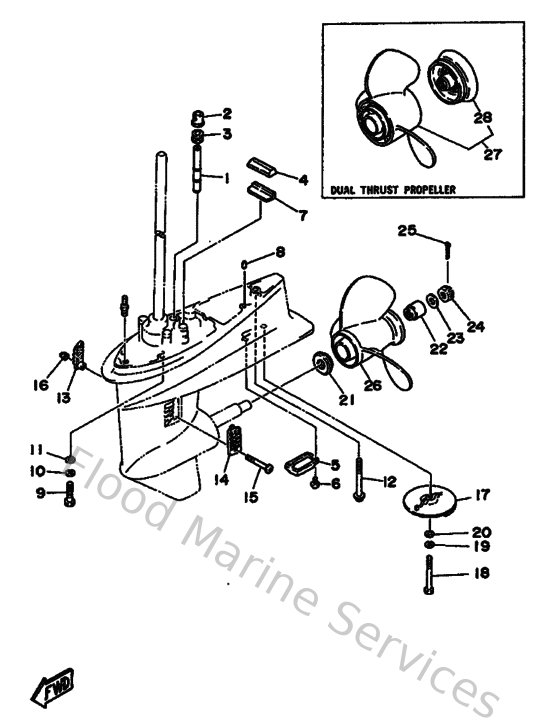

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
6J8443610000
Tube, water
Loading…
↗
2
6J8443660000
Damper, water seal
Loading…
↗
3
663443670000
Damper, water seal 3
Loading…
↗
4
688453750000
Damper, seal 2
Loading…
↗
5
6J8452241000
Cover, water inlet 3
Loading…
↗
6
978850601200
Screw, pan head(62j)
Loading…
↗
7
663453760094
Guide, seal damper
Loading…
↗
8
936061201900
Pin, dowel (614)
Loading…
↗
9
973951004000
Bolt, hexagon deep recess
Loading…
↗
10
929901010000
Ybs67-10 washer, spring
Loading…
↗
11
929901060000
Washer, plate
Loading…
↗
12
9011908M9200
Bolt, with washer
Loading…
↗
13
689452140100
Cover, water inlet 1
Loading…
↗
14
6J8452150000
Cover, water inlet
Loading…
↗
15
987800552500
Ybs53-525 screw,flat head
Loading…
↗
16
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
17
664453710100
Tab-trim
Loading…
↗
18
973950802000
Bolt, hexagon
Loading…
↗
19
929900810000
Ybs67-8 washer, spring
Loading…
↗
20
929900860000
Washer, plain (663)
Loading…
↗
21
6L2459870100
Spacer
Loading…
↗
22
689459970000
Spacer
Loading…
↗
23
929901420000
Washer, plain
Loading…
↗
24
901711401300
Nut(664)
Loading…
↗
25
914903003000
Pin, cotter
Loading…
↗
26
664459540100
Propeller (3x9-7/8 x12 -f)
Loading…
↗
27
6J8W459100EL
Propeller (3x10-5/8"x8-1/4"-f)
Loading…
↗
28
6J8459861098
Ring, deflector
Loading…
↗
