30DMH (1986)
Lower Casing & Drive 2

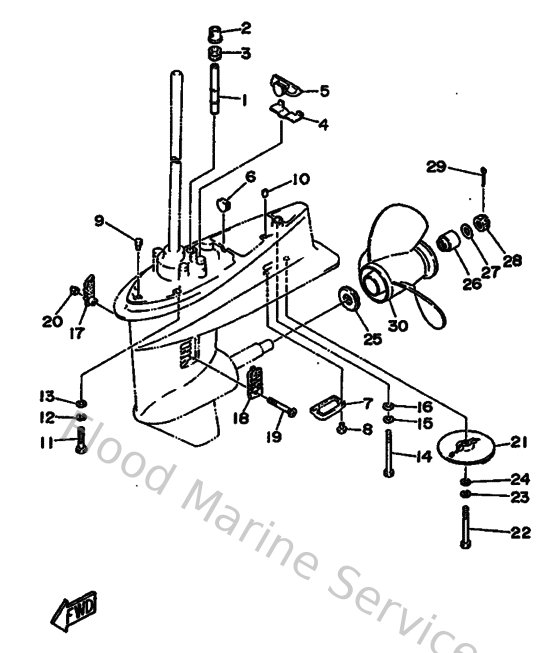

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
6J8443610000
Tube, water
Loading…
↗
2
6J8443660000
Damper, water seal
Loading…
↗
3
663443670000
Damper, water seal 3
Loading…
↗
4
6H9453760000
Guide, seal rubber
Loading…
↗
5
6J8453751000
Seal, Rubber
Loading…
↗
7
6J8452241000
Cover, water inlet 3
Loading…
↗
8
978900601200
Screw, pan head(62j)
Loading…
↗
9
6J8453780000
Nipple, hose (plug)
Loading…
↗
10
936061201900
Pin, dowel (614)
Loading…
↗
11
970751004000
Bolt, hexagon deep recess
Loading…
↗
12
929901010000
Ybs67-10 washer, spring
Loading…
↗
13
929901060000
Washer, plate
Loading…
↗
14
973950808500
Bolt, with washer
Loading…
↗
15
929900810000
Ybs67-8 washer, spring
Loading…
↗
16
929900860000
Washer, plain (663)
Loading…
↗
17
689452140100
Cover, water inlet 1
Loading…
↗
18
6J8452150000
Cover, water inlet
Loading…
↗
19
986800552500
Ybs53-525 screw,flat head
Loading…
↗
20
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
21
664453710100
Tab-trim
Loading…
↗
22
973950802000
Bolt, hexagon
Loading…
↗
25
664459870100
Spacer
Loading…
↗
26
689459970000
Spacer
Loading…
↗
27
929901420000
Washer, plain
Loading…
↗
28
901711401300
Nut(664)
Loading…
↗
29
914903003000
Pin, cotter
Loading…
↗
30
6644595200EL
Propeller (3x9-7/8 x14 -f)
Loading…
↗
