30GMH (1997)
Lower Casing & Drive 2

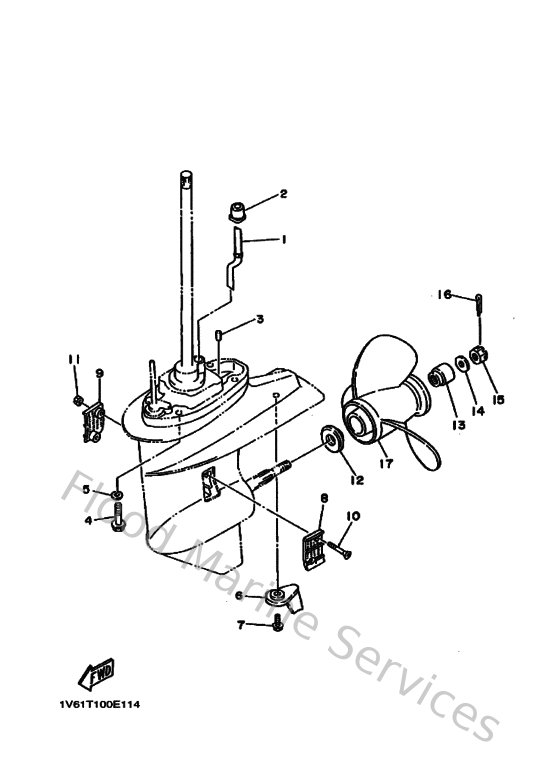

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
61N443610000
Tube, water
Loading…
↗
2
689443660000
Damper, water seal 2
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
9010510M1200
Bolt (689)
Loading…
↗
5
929901060000
Washer, plate
Loading…
↗
6
61N453710000
Tab-trim
Loading…
↗
7
9011906M4800
Bolt, with washer(61n)
Loading…
↗
8
6L2452140000
Cover, water inlet
Loading…
↗
9
6L2452150000
Cover, water inlet
Loading…
↗
10
987800553000
Ybs53-530 screw,flat head
Loading…
↗
11
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
12
6L2459870100
Spacer
Loading…
↗
13
689459970000
Spacer
Loading…
↗
14
929901420000
Washer, plain
Loading…
↗
15
901711401300
Nut(664)
Loading…
↗
16
914903003000
Pin, cotter
Loading…
↗
17
6644595200EL
Propeller (3x9-7/8 x14 -f)
Loading…
↗
