40HM (1985)
Lower Casing & Drive 2

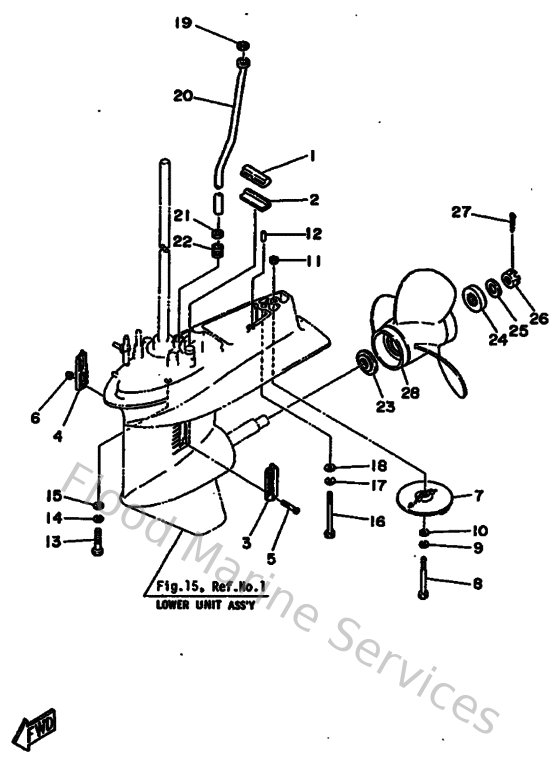

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
688453750000
Damper, seal 2
Loading…
↗
2
663453760000
Guide, seal damper
Loading…
↗
3
688452140100
Cover, water inlet
Loading…
↗
4
688452150100
Cover, water inlet
Loading…
↗
5
981800503500
Srcrew flat head (e03)
Loading…
↗
6
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
7
664453710100
Tab-trim
Loading…
↗
8
973750807500
Bolt
Loading…
↗
9
929900810000
Ybs67-8 washer, spring
Loading…
↗
10
929900860000
Washer, plain (663)
Loading…
↗
11
988800810000
Nut, hex.
Loading…
↗
12
936061201900
Pin, dowel (614)
Loading…
↗
13
973751004000
Bolt, hexagon deep recess
Loading…
↗
14
929901010000
Ybs67-10 washer, spring
Loading…
↗
15
929901060000
Washer, plate
Loading…
↗
16
973750808500
Bolt, with washer
Loading…
↗
19
902021206000
Washer, plate(663)
Loading…
↗
21
904301207200
Gasket
Loading…
↗
22
663443670000
Damper, water seal 3
Loading…
↗
23
663459870100
Spacer
Loading…
↗
24
670459970200
Spacer
Loading…
↗
25
929901620000
958-58204-00 washer,plain
Loading…
↗
26
901711601100
Nut, castle (663)
Loading…
↗
27
914903002500
Pin cotter
Loading…
↗
28
663459490136
Propeller (3x10-3/4"x16"-g)
Loading…
↗
