40VMO (1997)
Lower Casing & Drive 2

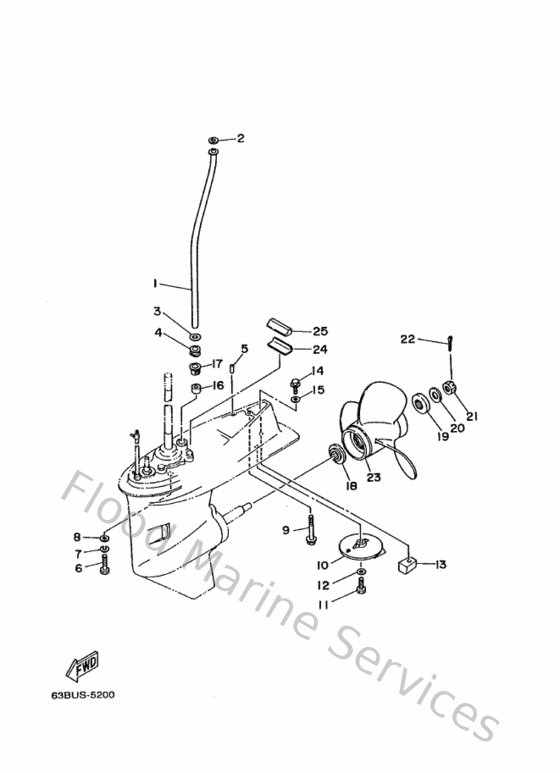

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
63D443611000
Tube, water
Loading…
↗
2
902021206000
Washer, plate(663)
Loading…
↗
3
904301207200
Gasket
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
970751004000
Bolt, hexagon deep recess
Loading…
↗
7
929901010000
Ybs67-10 washer, spring
Loading…
↗
8
929901060000
Washer, plate
Loading…
↗
9
9011908M8400
Bolt, with washer
Loading…
↗
10
664453710100
Tab-trim
Loading…
↗
11
970950802500
Bolt (62g)
Loading…
↗
12
929900810000
Ybs67-8 washer, spring
Loading…
↗
13
63D452511000
Anode
Loading…
↗
14
970950802000
Bolt, hexagon
Loading…
↗
16
663443660000
Damper, water seal 2
Loading…
↗
17
63D443120000
Cover, water pump housing
Loading…
↗
18
663459870200
Spacer
Loading…
↗
19
670459970200
Spacer
Loading…
↗
20
929901620000
958-58204-00 washer,plain
Loading…
↗
21
901711601100
Nut, castle (663)
Loading…
↗
22
914903003000
Pin, cotter
Loading…
↗
23
663459746098
Propeller (3x11-1/2"x13"-g)
Loading…
↗
24
663453760094
Guide, seal damper
Loading…
↗
25
63D453750000
Damper, seal
Loading…
↗
