55BM (1990)
Lower Casing & Drive 2

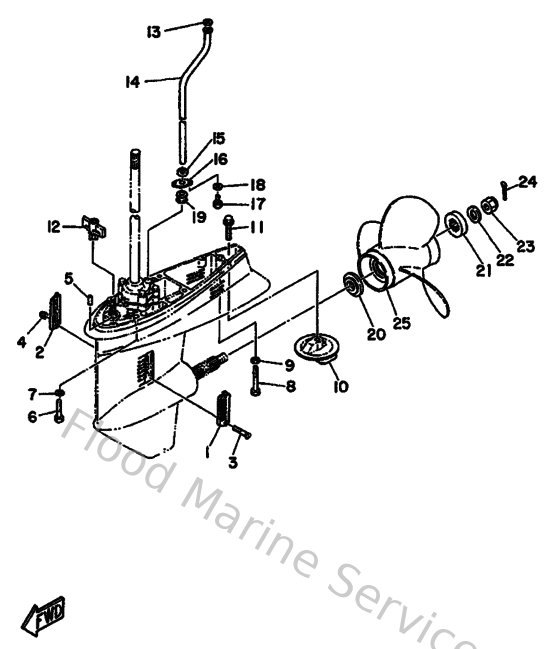

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
688452140200
Cover, water inlet
Loading…
↗
2
688452150200
Cover, water inlet
Loading…
↗
3
986800554000
Ybs53-540 screw,flat head
Loading…
↗
4
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
973951004000
Bolt, hexagon deep recess
Loading…
↗
7
929901010000
Ybs67-10 washer, spring
Loading…
↗
8
973950806000
Bolt, hexagon
Loading…
↗
9
929900810000
Ybs67-8 washer, spring
Loading…
↗
10
679453710000
Tab trim
Loading…
↗
11
9010510M0000
Bolt, hexagon (663)
Loading…
↗
12
697436620000
Guide, reverse rod
Loading…
↗
13
902021206000
Washer, plate(663)
Loading…
↗
14
663443611000
Tube, water
Loading…
↗
15
904301207200
Gasket
Loading…
↗
16
663443730000
Set plate, water tube
Loading…
↗
17
973950601200
Bolt(gh1)
Loading…
↗
18
929950610000
Washer(6a1)
Loading…
↗
19
663443670000
Damper, water seal 3
Loading…
↗
20
663459870200
Spacer
Loading…
↗
21
670459970200
Spacer
Loading…
↗
22
929901620000
958-58204-00 washer,plain
Loading…
↗
23
901711601100
Nut, castle (663)
Loading…
↗
24
914904003000
Pin, cotter (663)
Loading…
↗
25
663459490100
Propeller (3x10-3/4"x16"-g)
Loading…
↗
