6CEM (1988)
Lower Casing & Drive 2

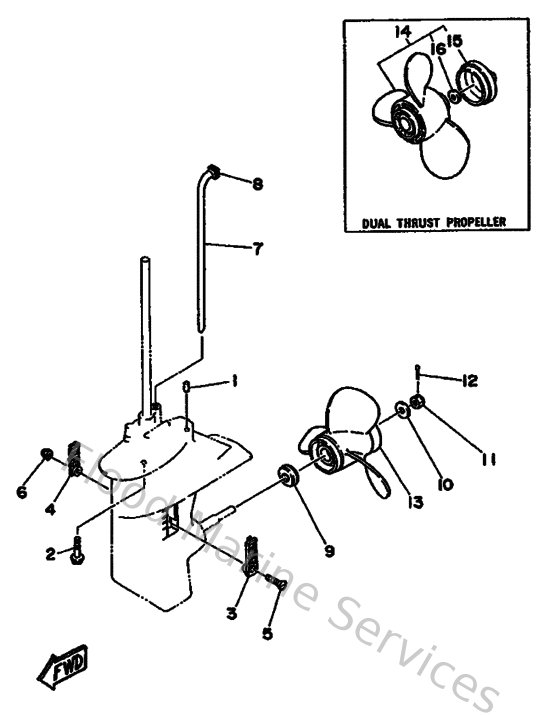

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
936040806200
Pin,dowel (626)
Loading…
↗
2
958950603000
Bolt, flange deep recess
Loading…
↗
3
6G1452140000
Cover, water inlet
Loading…
↗
4
6G1452150000
Cover, water inlet
Loading…
↗
5
981800502000
Screw, countersunk
Loading…
↗
6
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
7
6G1443610000
Tube, water 1
Loading…
↗
8
6G1443650000
Damper, water seal 1
Loading…
↗
9
6G1459870000
Spacer 1
Loading…
↗
10
9020110M1400
Washer, plate(6m7)
Loading…
↗
11
9017110M0100
Nut castle (683)
Loading…
↗
12
914903002000
Pin cotter
Loading…
↗
13
6G1459470000
Propeller (3x8-1/2"x6-1/2"-n)
Loading…
↗
14
6G1W459101EL
Propeller (3x9 x7 -n)
Loading…
↗
15
6G1456160100
Nut, propeller
Loading…
↗
16
9020110M1500
Washer, plate(6g9)
Loading…
↗
