Yamaha Outboard Parts - Lower Casing & Drive 2 - 80AETOL (1990) | Flood Marine

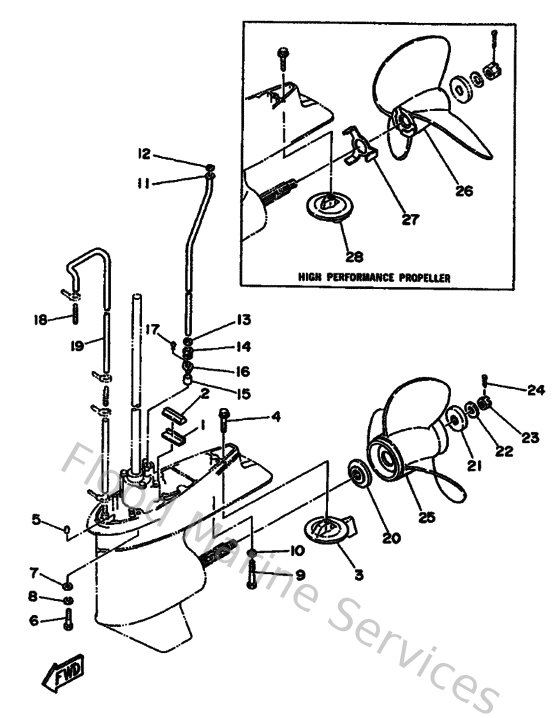

Diagram: Lower Casing & Drive 2

Diagram

Parts List

Reference
Description
Price


1
663453760094
Guide, seal damper
Loading…

↗
2
688453750000
Damper, seal 2
Loading…

↗
3
688453710200
Tab-trim
Loading…

↗
4
9010510M0000
Bolt, hexagon (663)
Loading…

↗
5
936061201900
Pin, dowel (614)
Loading…

↗
6
973951004000
Bolt, hexagon deep recess
Loading…

↗
7
929901060000
Washer, plate
Loading…

↗
8
929901010000
Ybs67-10 washer, spring
Loading…

↗
9
973950806000
Bolt, hexagon
Loading…

↗
10
929900810000
Ybs67-8 washer, spring
Loading…

↗
11
688443611000
Tube, water 1
Loading…

↗
12
902021206000
Washer, plate(663)
Loading…

↗
13
904301207200
Gasket
Loading…

↗
14
663443670000
Damper, water seal 3
Loading…

↗
15
663443660000
Damper, water seal 2
Loading…

↗
16
9048019M0600
Grommet (688)
Loading…

↗
17
977804011200
Screw, pan head tapping
Loading…

↗
18
6E5835580000
End, nipple
Loading…

↗
19
9044507MF100
Hose (l570)
Loading…

↗
20
688459870100
Spacer
Loading…

↗
21
688459970100
Spacer 2
Loading…

↗
22
9020117M0100
Washer, plate(6u0)
Loading…

↗
23
901711601100
Nut, castle (663)
Loading…

↗
24
914904003000
Pin, cotter (663)
Loading…

↗
25
688459300200
Propeller (3x13x17)
Loading…

↗
26
6E5459781000
Propeller assembly (3x14"x26"-p)
Loading…

↗
27
6E5459941000
Plate, tooth
Loading…

↗
28
6E5453711000
Tab-trim
Loading…

↗
