9.9DMH (1988)
Lower Casing & Drive 2

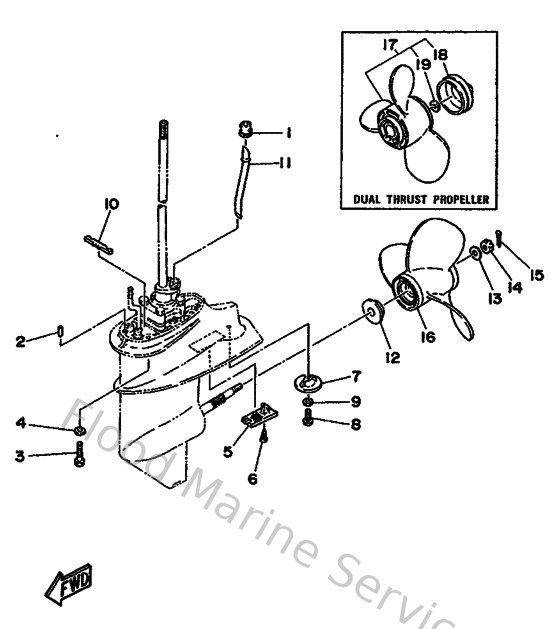

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
626443650100
Damper, water seal 1
Loading…
↗
2
936061201900
Pin, dowel (614)
Loading…
↗
3
973900803500
Bolt(70w)
Loading…
↗
4
929900860000
Washer, plain (663)
Loading…
↗
5
6E7452140000
Cover, water inlet
Loading…
↗
6
985800501200
Screw,pan head (646)
Loading…
↗
7
6E8452510200
Anode
Loading…
↗
8
973950601600
Bolt, hexagon deep recess
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
10
682453750100
Damper, seal
Loading…
↗
11
682443611000
Tube, water
Loading…
↗
12
683459870100
Spacer 1
Loading…
↗
13
9020110M0100
Washer, plate(6m7)
Loading…
↗
14
9017110M0100
Nut castle (683)
Loading…
↗
15
914903002000
Pin cotter
Loading…
↗
16
683459410000
Propeller (3x9-1/4"x12"-j)
Loading…
↗
17
683W459101EL
Propeller (3x9-3/4 x8 -j)
Loading…
↗
