9.9DMH (1992)
Lower Casing & Drive 2

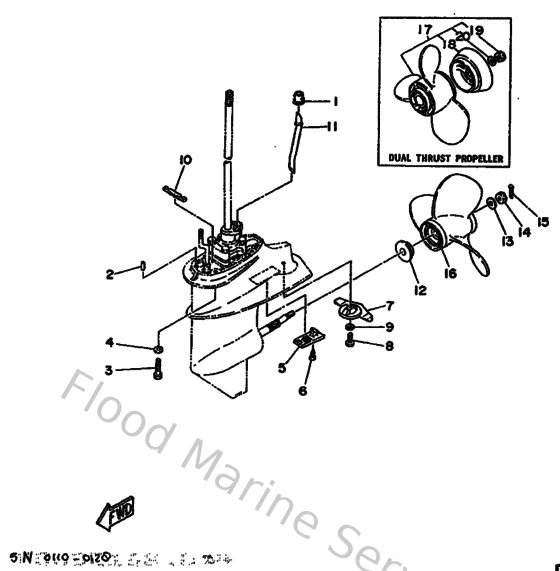

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
626443650100
Damper, water seal 1
Loading…
↗
2
936061201900
Pin, dowel (614)
Loading…
↗
3
970900803500
Bolt(70w)
Loading…
↗
4
929900860000
Washer, plain (663)
Loading…
↗
5
6E7452140000
Cover, water inlet
Loading…
↗
6
985800501200
Screw,pan head (646)
Loading…
↗
7
6E8452510100
Anode
Loading…
↗
8
970800602000
Bolt(7u8)
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
10
682453750100
Damper, seal
Loading…
↗
11
682443610000
Tube, water
Loading…
↗
12
6E7459870100
Spacer
Loading…
↗
13
9020110M0100
Washer, plate(6m7)
Loading…
↗
14
9017110M0100
Nut castle (683)
Loading…
↗
15
914903002000
Pin cotter
Loading…
↗
16
6834594900EL
Propeller (3x9-1/2"x6-1/2"-j)
Loading…
↗
17
683W45920200
Propeller (3x9-3/4"x6-1/2"-j)
Loading…
↗
18
6E7459860000
Ring, deflector
Loading…
↗
19
9017110M0700
Nut, castle(6g8)
Loading…
↗
20
9020110M0200
Washer, plate(6g9)
Loading…
↗
