9.9FMH (1999)
Lower Casing & Drive 2

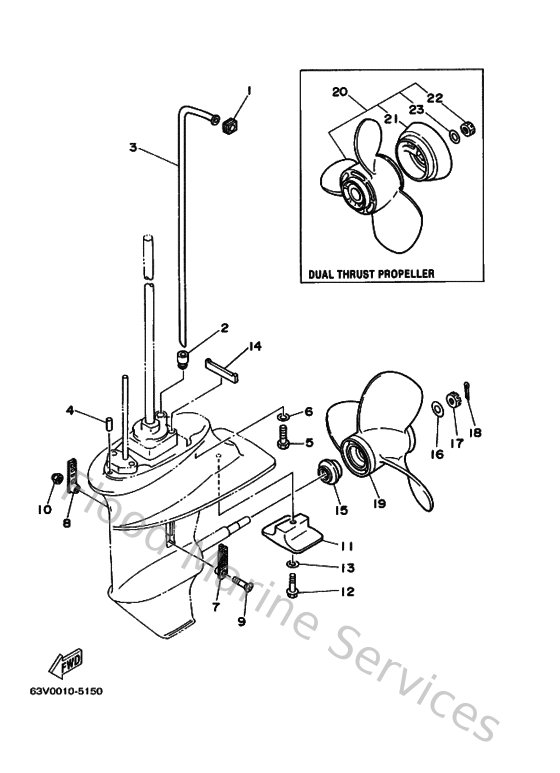

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
63V443651000
Damper, water seal 1
Loading…
↗
2
63V443680000
Rubber, water seal 4
Loading…
↗
3
63V443610100
Tube, water
Loading…
↗
4
9360410M0300
Pin, dowel (688)
Loading…
↗
5
970750803000
Bolt, hexagon (fj1)
Loading…
↗
6
929950860000
Washer, plain (663)
Loading…
↗
7
6G1452140000
Cover, water inlet
Loading…
↗
8
63V452150000
Cover, water inlet
Loading…
↗
9
981800502500
Ybs53-525 screw,flat head
Loading…
↗
10
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
11
61N452510100
Anode
Loading…
↗
12
958950603000
Bolt, flange deep recess
Loading…
↗
13
929900630000
Washer, tooth
Loading…
↗
14
63V453750000
Damper, seal
Loading…
↗
15
6E7459870100
Spacer
Loading…
↗
16
9020110M0100
Washer, plate(6m7)
Loading…
↗
17
9017110M0100
Nut castle (683)
Loading…
↗
18
914903002000
Pin cotter
Loading…
↗
19
683459520000
Propeller (3X9-1/4"x9-3/4"-J)
Loading…
↗
20
683W45920200
Propeller (3x9-3/4"x6-1/2"-j)
Loading…
↗
21
6E7459860000
Ring, deflector
Loading…
↗
22
9017110M0700
Nut, castle(6g8)
Loading…
↗
23
9020110M0200
Washer, plate(6g9)
Loading…
↗
