D150NETO (2001)
Lower Casing & Drive 2

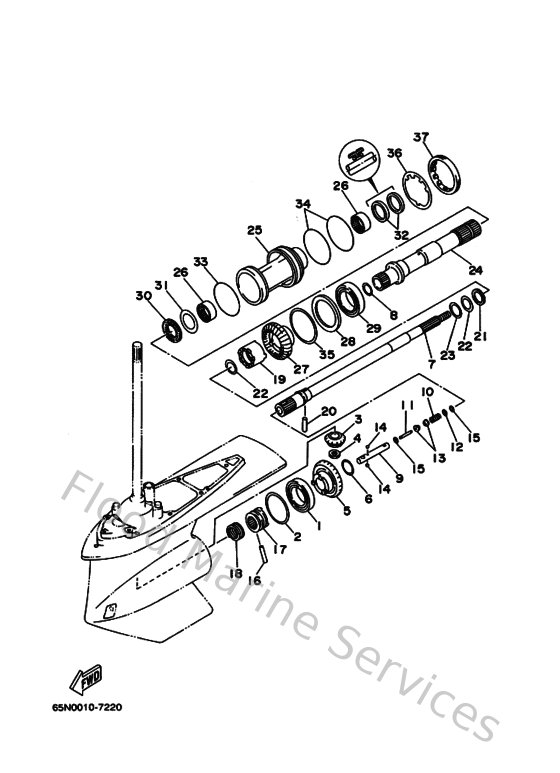

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
933320004800
Bearing(6k0)
Loading…
↗
2
6G5455676000
Shim (t:0.50mm)
Loading…
↗
3
65N455510000
Pinion (13T)
Loading…
↗
4
9017016M0100
Nut, hexagon (688)
Loading…
↗
5
65N455600000
Gear
Loading…
↗
6
9020135M0200
Washer Plate(65N)
Loading…
↗
7
65N456110000
Shaft, propeller
Loading…
↗
8
9020128M0300
Washer, Plate
Loading…
↗
9
65N456340000
Slide, Shift
Loading…
↗
10
9050110M7700
Spring, compression(61a)
Loading…
↗
11
6H1456680000
Shaft, free 1
Loading…
↗
12
9020102M0000
Washer, plate(61a)
Loading…
↗
13
61A456350000
Plunger, shift
Loading…
↗
14
935010401100
Ball
Loading…
↗
15
9018302M0300
Nut, spring (6h1)
Loading…
↗
16
9025008M0700
Pin, straight (6g5)
Loading…
↗
17
65N456310000
Clutch, dog
Loading…
↗
18
6E5456330100
Ring, cross pin
Loading…
↗
19
65N456311000
Clutch Dog
Loading…
↗
20
9360642M2200
Pin, Dowel
Loading…
↗
21
9038732M0000
Collar
Loading…
↗
22
9020136M0000
Washer, plate(65n)
Loading…
↗
23
9344036M0900
Circlip(65N)
Loading…
↗
24
65N456115000
Shaft, propeller
Loading…
↗
25
65N453320094
Housing, bearing
Loading…
↗
26
93317445U900
Bearing, cylindrical(65n)
Loading…
↗
27
65N455700000
Gear 2 (26T)
Loading…
↗
28
65N455760000
Washer, Thrust 2
Loading…
↗
30
93341445V300
Bearing
Loading…
↗
31
65N455780050
Shim (T:0.50Mm)
Loading…
↗
32
9310145M5900
Oil seal(65n)
Loading…
↗
33
9321098M3300
O-ring (6a5)
Loading…
↗
34
9321103MH900
O-ring(65n)
Loading…
↗
35
65N455776000
Shim (T:0.50Mm)
Loading…
↗
36
65N453830000
Washer, Claw
Loading…
↗
37
65N453840000
Nut
Loading…
↗
