E60HELH (2000)
Lower Casing & Drive 2

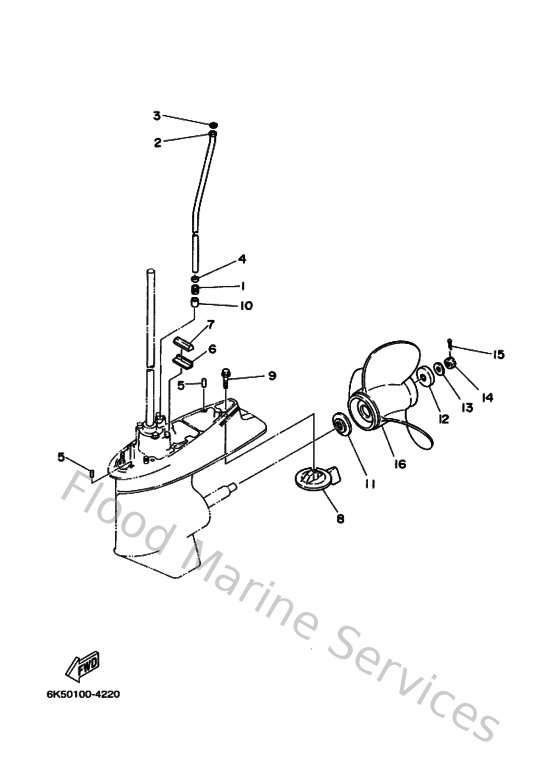

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
663443670000
Damper, water seal 3
Loading…
↗
2
6K5443611000
Tube, water
Loading…
↗
3
902021206000
Washer, plate(663)
Loading…
↗
4
904301207200
Gasket
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
663453760094
Guide, seal damper
Loading…
↗
7
688453750000
Damper, seal 2
Loading…
↗
8
67F453710000
Tab-trim
Loading…
↗
9
9010510M6700
Bolt, hexagon (663)
Loading…
↗
10
663443660000
Damper, water seal 2
Loading…
↗
11
688459870100
Spacer
Loading…
↗
12
688459970100
Spacer 2
Loading…
↗
13
9020117M0000
Washer, plate(6h1)
Loading…
↗
14
901711601100
Nut, castle (663)
Loading…
↗
15
914904003000
Pin, cotter (663)
Loading…
↗
16
688459700398
Propeller (3x13"x19"-k)
Loading…
↗
