F115AET (2001)
Lower Casing & Drive 2

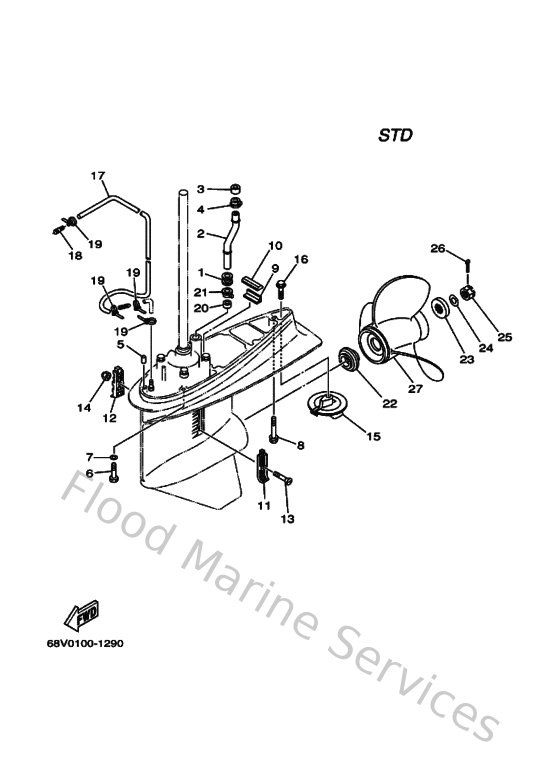

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
6E5443660000
Damper, water seal 2
Loading…
↗
2
68V443611000
Tube, water 1
Loading…
↗
3
6E5443650000
Damper, water seal 1
Loading…
↗
4
6E5443120000
Cover, water pump housing
Loading…
↗
5
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
6
970751004500
Bolt(64d)
Loading…
↗
7
929901010000
Ybs67-10 washer, spring
Loading…
↗
8
9011910M8900
Bolt, with washer
Loading…
↗
9
663453760094
Guide, seal damper
Loading…
↗
10
688453750000
Damper, seal 2
Loading…
↗
11
688452140200
Cover, water inlet
Loading…
↗
12
688452150200
Cover, water inlet
Loading…
↗
13
9015205M0700
Screw, countersunk
Loading…
↗
14
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
15
6E5453710100
Trim tab
Loading…
↗
16
9010510M0000
Bolt, hexagon (663)
Loading…
↗
17
90445076K200
Hose (l1700)
Loading…
↗
18
6E5835580000
End, nipple
Loading…
↗
19
904651009800
Clamp
Loading…
↗
22
6E5459870100
Spacer 1
Loading…
↗
23
688459970100
Spacer 2
Loading…
↗
24
929901820000
Washer (6e5)
Loading…
↗
25
9017118M0400
Nut, castle (6e5)
Loading…
↗
26
914904003000
Pin, cotter (663)
Loading…
↗
27
6E54594100EL
Propeller (3x13x19-k)
Loading…
↗
