Yamaha Outboard Parts - Lower Casing & Drive 2 - F4AMH (2000) | Flood Marine

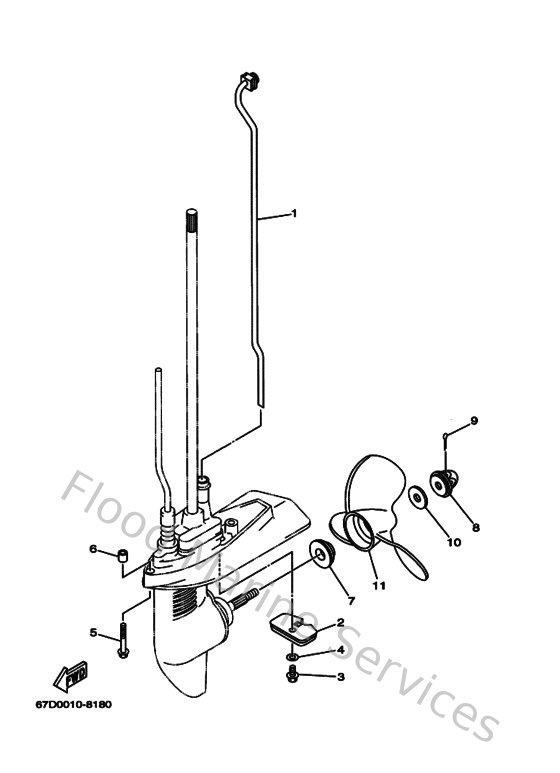

Diagram: Lower Casing & Drive 2

Diagram

Parts List

Reference
Description
Price


1
67D443600000
Water Tube assembly
Loading…

↗
2
6L5452510300
Anode
Loading…

↗
3
958950601200
Bolt, flange deep recess
Loading…

↗
4
929900630000
Washer, tooth
Loading…

↗
5
9011906M4000
Bolt, with washer
Loading…

↗
6
9038706M1400
Collar(6e0)
Loading…

↗
7
6L5459870100
Spacer 1
Loading…

↗
8
6L5456160000
Nut, propeller
Loading…

↗
9
914902503000
Pin, cotter(6l5)
Loading…

↗
10
9020108M5400
Washer, plate (6e5)
Loading…

↗
11
6E04594900EL
Propeller (3x7-1/4 x6-1/2 -ba)
Loading…

↗
