F80AET (2001)
Lower Casing & Drive 2

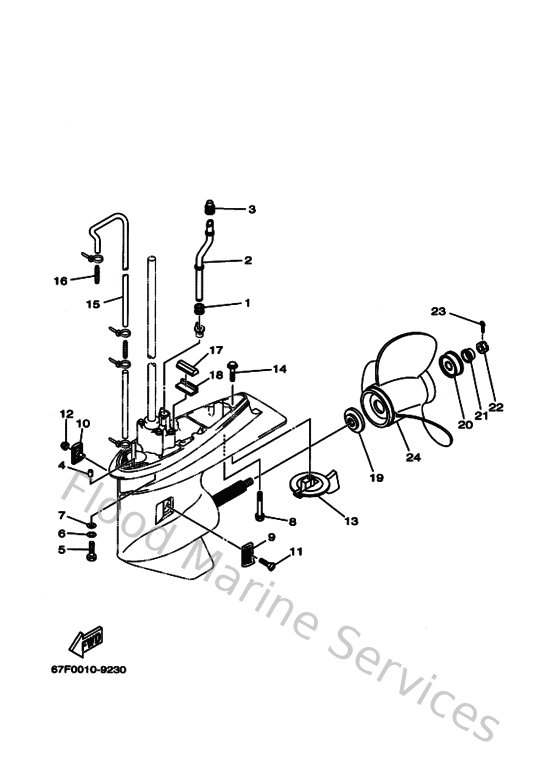

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
663443670000
Damper, water seal 3
Loading…
↗
2
67F443611000
Tube, water 1
Loading…
↗
3
67F443650000
Damper, water seal
Loading…
↗
4
936061201900
Pin, dowel (614)
Loading…
↗
5
970751004000
Bolt, hexagon deep recess
Loading…
↗
6
929951010000
Ybs67-10 washer, spring
Loading…
↗
7
929901060000
Washer, plate
Loading…
↗
8
9011908M8400
Bolt, with washer
Loading…
↗
9
6H1452140000
Cover, water inlet
Loading…
↗
10
6H1452150000
Cover, water inlet
Loading…
↗
11
9015105M0000
Screw, countersunk(692)
Loading…
↗
12
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
13
67F453710000
Tab-trim
Loading…
↗
14
9010510M6700
Bolt, hexagon (663)
Loading…
↗
15
9044507ME000
Hose (l1457)
Loading…
↗
16
6E5835580000
End, nipple
Loading…
↗
17
688453750000
Damper, seal 2
Loading…
↗
18
663453760094
Guide, seal damper
Loading…
↗
19
688459870100
Spacer
Loading…
↗
20
67F459970000
Spacer 2
Loading…
↗
21
9038925M0000
Bush
Loading…
↗
22
901711601100
Nut, castle (663)
Loading…
↗
23
914904003000
Pin, cotter (663)
Loading…
↗
24
688459700398
Propeller (3x13"x19"-k)
Loading…
↗
