F9.9CMH (2000)
Lower Casing & Drive 2

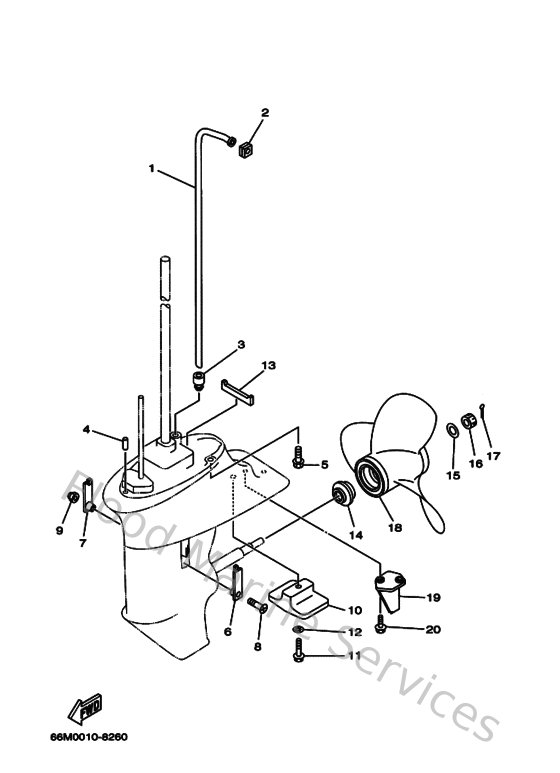

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
66M443610000
Tube, Water 1
Loading…
↗
2
63V443651000
Damper, water seal 1
Loading…
↗
3
63V443680000
Rubber, water seal 4
Loading…
↗
4
9360412M0700
Pin, dowel (688)
Loading…
↗
5
975750853000
Bolt, hexagon w/w deep recess
Loading…
↗
6
6G1452140000
Cover, water inlet
Loading…
↗
7
63V452150000
Cover, water inlet
Loading…
↗
8
9015205M0400
Screw, countersunk
Loading…
↗
9
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
10
61N452510000
Anode
Loading…
↗
11
958950603000
Bolt, flange deep recess
Loading…
↗
12
929900630000
Washer, tooth
Loading…
↗
13
63V453750000
Damper, seal
Loading…
↗
14
6E7459870100
Spacer
Loading…
↗
15
9020110M0100
Washer, plate(6m7)
Loading…
↗
16
9017110M0100
Nut castle (683)
Loading…
↗
17
914903002000
Pin cotter
Loading…
↗
18
683459520000
Propeller (3X9-1/4"x9-3/4"-J)
Loading…
↗
19
66M453710000
Tab-trim
Loading…
↗
20
975950651600
Bolt, with washer(6r6)
Loading…
↗
