Yamaha Outboard Parts - Lower Casing & Drive 2 - FT8DMHSL (2001) | Flood Marine

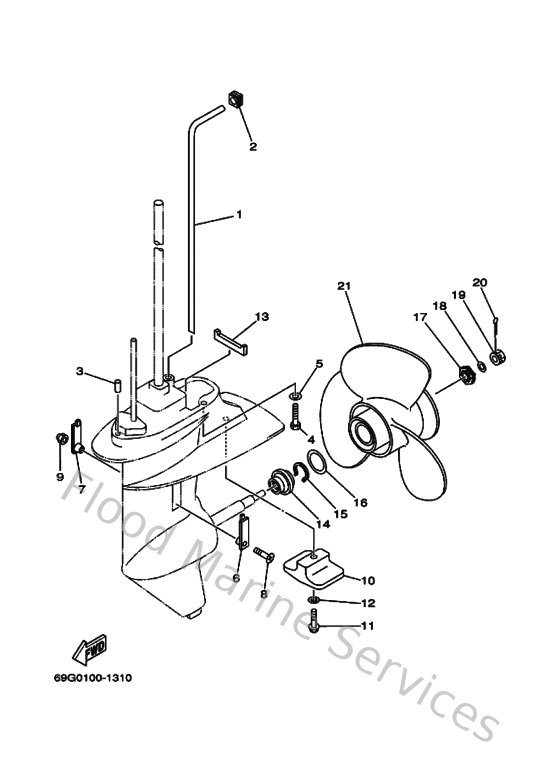

Diagram: Lower Casing & Drive 2

Diagram

Parts List

Reference
Description
Price


1
68T443611000
Tube, water 1
Loading…

↗
2
63V443651000
Damper, water seal 1
Loading…

↗
3
9360412M0700
Pin, dowel (688)
Loading…

↗
4
970750803500
Bolt(70w)
Loading…

↗
5
929900860000
Washer, plain (663)
Loading…

↗
6
6G1452140000
Cover, water inlet
Loading…

↗
7
63V452150000
Cover, water inlet
Loading…

↗
8
9015205M0400
Screw, countersunk
Loading…

↗
9
901850500200
Nut nylon (sus)(ex4)
Loading…

↗
10
61N452510100
Anode
Loading…

↗
11
958950603000
Bolt, flange deep recess
Loading…

↗
12
929900630000
Washer, tooth
Loading…

↗
13
63V453750000
Damper, seal
Loading…

↗
14
6G8459870200
Spacer
Loading…

↗
15
9345010M0400
Circlip(6g8)
Loading…

↗
16
9020131MA300
Washer, plate (6g8)
Loading…

↗
17
6G8459970000
Spacer
Loading…

↗
18
9020110M0200
Washer, plate(6g9)
Loading…

↗
19
9017110M0700
Nut, castle(6g8)
Loading…

↗
20
914903002500
Pin cotter
Loading…

↗
21
69G4594100EL
Propeller (3x11-3/4 x5-3/4 -r)
Loading…

↗
