XZZ150Q (2001)
Lower Casing & Drive 2

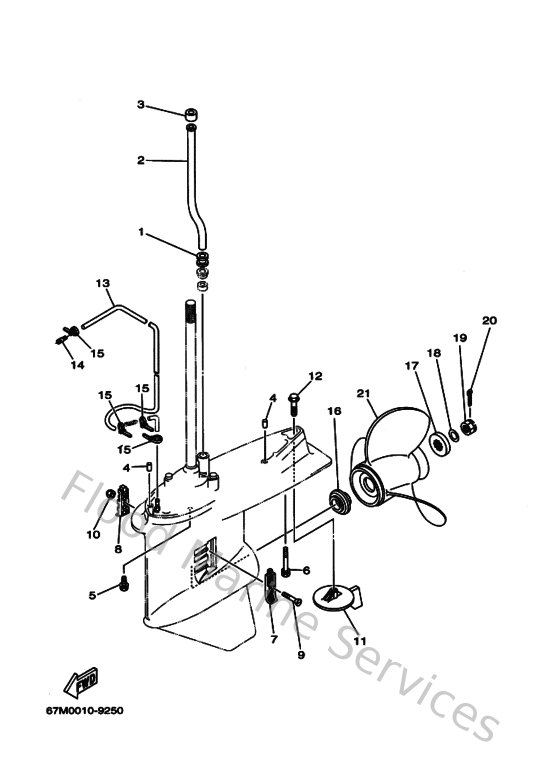

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
6E5443660000
Damper, water seal 2
Loading…
↗
2
6E5443610000
Tube, water
Loading…
↗
3
6E5443650000
Damper, water seal 1
Loading…
↗
4
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
5
9010110M7000
Bolt(6j9)
Loading…
↗
6
9011910M8900
Bolt, with washer
Loading…
↗
7
6J9452140000
Cover, water inlet
Loading…
↗
8
6J9452150000
Cover, water inlet
Loading…
↗
9
9015205M0800
Screw, countersunk
Loading…
↗
10
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
11
6J9453710100
Tab-trim
Loading…
↗
12
9010510M0000
Bolt, hexagon (663)
Loading…
↗
13
9044507M3300
Hose (L1080)
Loading…
↗
14
6E5835580000
End, nipple
Loading…
↗
15
904651009800
Clamp
Loading…
↗
16
6E5459870100
Spacer 1
Loading…
↗
17
688459970100
Spacer 2
Loading…
↗
18
929901820000
Washer (6e5)
Loading…
↗
19
9017118M0400
Nut, castle (6e5)
Loading…
↗
20
914904003000
Pin, cotter (663)
Loading…
↗
21
6J9459761000
Propeller (3X14-1/2"x21"-M1)
Loading…
↗
