Yamaha Outboard Parts - Lower Casing & Drive 3 - 50GETO (2000) | Flood Marine
New Search
Parts
New Outboards
Home
50GETO (2000)
Lower Casing & Drive 3

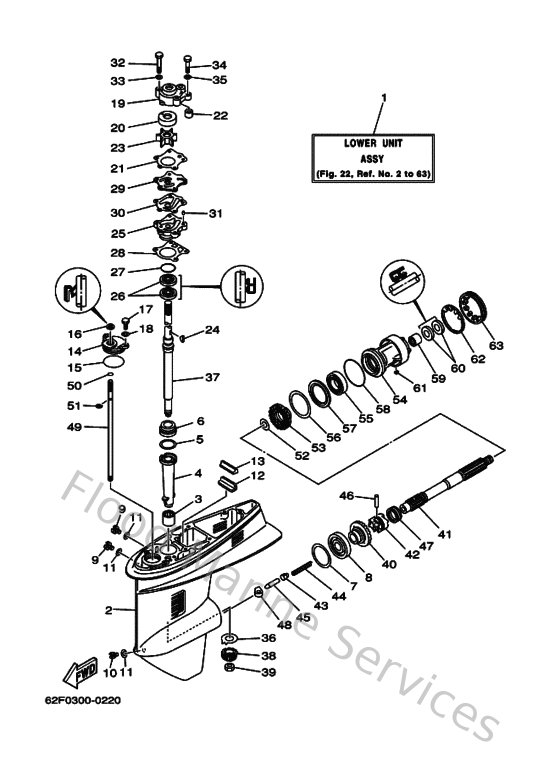

Diagram: Lower Casing & Drive 3
Parts List
Reference
Description
Price
2
69745311024D
Casing, lower
Loading…
↗
3
93315322V200
Bearing Needle (698)
Loading…
↗
4
698455360000
Sleeve Drive Shaft
Loading…
↗
5
663455870130
Shim (t:0,30mm)
Loading…
↗
6
933320000100
Brg, tapered roller (409)
Loading…
↗
7
663455676000
Shim (t:0.50mm)
Loading…
↗
8
933320000300
Brg,cyl-cal roller 318g ky
Loading…
↗
9
9034008M0400
Plug, straight screw
Loading…
↗
10
688453410000
Plug, drain
Loading…
↗
11
904300802000
Gasket
Loading…
↗
12
663453760000
Guide, seal damper
Loading…
↗
13
663453750000
Rubber, seal 2
Loading…
↗
14
663453210000
Plate
Loading…
↗
15
932104904600
O-ring (620)
Loading…
↗
16
931060901400
Oil seal
Loading…
↗
17
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
929950660000
Washer, plain (646)
Loading…
↗
19
663443110200
Housing, water pump
Loading…
↗
20
663443220000
Insert, cartridge
Loading…
↗
21
66344315A000
Gasket,water pump 1
Loading…
↗
22
663443660000
Damper, water seal 2
Loading…
↗
23
6H3443520000
Impellar
Loading…
↗
24
9028003M0300
Key, woodruff (697)
Loading…
↗
25
663443410094
Housing, water pump
Loading…
↗
26
931012307000
Oil seal (663)
Loading…
↗
27
932104104200
O-ring (132)
Loading…
↗
28
66344316A000
Gasket,water pump 2
Loading…
↗
29
663443230000
Outer plate, cartridge
Loading…
↗
30
66344324A000
Gasket,cartridge outer plate
Loading…
↗
31
936040806200
Pin,dowel (626)
Loading…
↗
32
970950805500
Bolt, hexagon
Loading…
↗
33
929900860000
Washer, plain (663)
Loading…
↗
34
970950804500
Bolt, hexagon
Loading…
↗
35
929950860000
Washer, plain (663)
Loading…
↗
36
663455520000
Bearing, plain
Loading…
↗
37
62F455011000
Drive Shaft Comp.
Loading…
↗
38
675455510000
Pinion (14T)
Loading…
↗
39
901701213800
Nut hexagon(663)
Loading…
↗
40
675455600000
Gear (24T)
Loading…
↗
41
697456110000
Shaft, propeller
Loading…
↗
42
663456310100
Clutch, dog
Loading…
↗
43
663456340000
Slide, shift
Loading…
↗
44
905011623300
Spring compression(663)
Loading…
↗
45
688456350000
Plunger, shift
Loading…
↗
46
902500602300
Pin, strait (663)
Loading…
↗
47
663456330000
Ring, cross pin
Loading…
↗
48
663441510000
Cam, shift
Loading…
↗
49
6K5441440000
Rod, shift
Loading…
↗
50
932100700300
O-ring (11m)
Loading…
↗
51
990010860000
Circlip(2r6)
Loading…
↗
52
902012242900
Washer, plate(663)
Loading…
↗
53
675455710100
Gear 2
Loading…
↗
54
663453310094
Housing, bearing
Loading…
↗
55
933060070200
Brg,r-b 6007 62mm 150g ky
Loading…
↗
56
663455770130
Shim (t:0.30mm)
Loading…
↗
57
663455760000
Washer, thrust 2
Loading…
↗
58
9321066M9800
O-ring(6h4)
Loading…
↗
59
933172220400
Brg,cyl-cal roller 25.5g nt
Loading…
↗
60
931012206700
Oil seal (22x36x6-663)
Loading…
↗
61
902820401000
Key, strait(663)
Loading…
↗
62
9021448M0300
Washer, claw(697)
Loading…
↗
63
697453840000
Nut
Loading…
↗
