D150NETO (2001)
Lower Casing & Drive 3

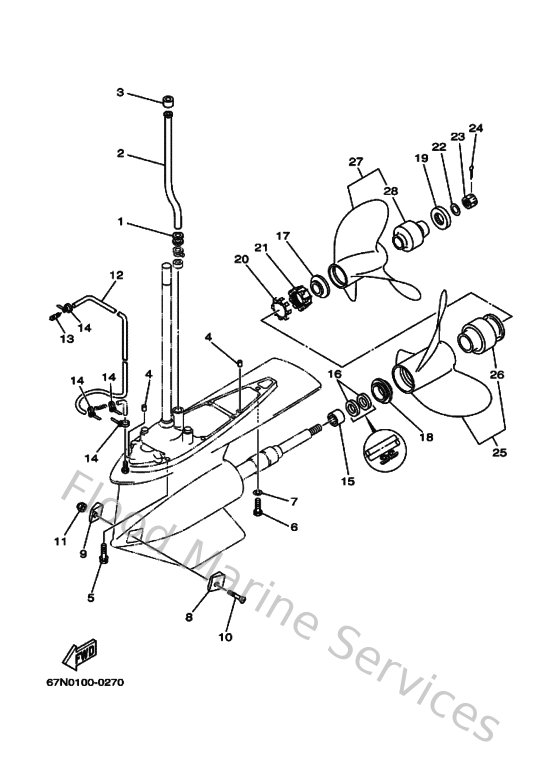

Diagram: Lower Casing & Drive 3
Parts List
Reference
Description
Price
1
6E5443660000
Damper, water seal 2
Loading…
↗
2
6E5443610000
Tube, water
Loading…
↗
3
6E5443650000
Damper, water seal 1
Loading…
↗
4
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
5
9010110M7000
Bolt(6j9)
Loading…
↗
7
929951010000
Ybs67-10 washer, spring
Loading…
↗
8
65N452140000
Cover Water Inlet
Loading…
↗
9
65N452150000
Cover, Water Inlet 2
Loading…
↗
10
9014205M0700
Screw, Countersunk
Loading…
↗
11
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
12
9044507M3300
Hose (L1080)
Loading…
↗
13
6E5835580000
End, nipple
Loading…
↗
14
904651009800
Clamp
Loading…
↗
15
93317428U800
Bearing, cylindrical(6u4)
Loading…
↗
16
9310128M6700
Oil seal
Loading…
↗
17
65N459870000
Spacer
Loading…
↗
18
65N459970000
Spacer 2
Loading…
↗
19
688459970100
Spacer 2
Loading…
↗
20
65N459940000
Plate, tooth
Loading…
↗
21
65N456160000
Nut, propeller
Loading…
↗
22
929901820000
Washer (6e5)
Loading…
↗
23
9017118M0400
Nut, castle (6e5)
Loading…
↗
24
914904003000
Pin, cotter (663)
Loading…
↗
26
65N459810000
Damper Rubber, Propeller
Loading…
↗
27
65N459430000
Propeller, Rear (25" X 13"-Mr)
Loading…
↗
28
6G5459810000
Damper Rubber, Propeller
Loading…
↗
