LF115AET (2000)
Lower Casing & Drive 3

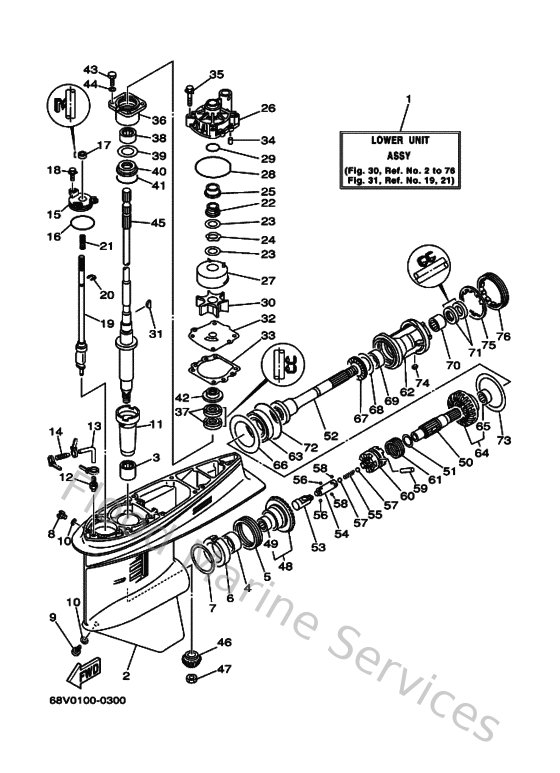

Diagram: Lower Casing & Drive 3
Parts List
Reference
Description
Price
1
68W45300308D
Lower Unit assembly
Loading…
↗
2
6E545301048D
Casing, lower
Loading…
↗
3
93315628U900
Brg,cyl-cal roller (6e5)
Loading…
↗
4
93315345W000
Bearing, cylindrical(6l6)
Loading…
↗
5
93341360U800
Bearing, thrust (6l6)
Loading…
↗
6
6L6455380000
Spacer, 1
Loading…
↗
7
6E5455676000
Shim (t:0.50mm)
Loading…
↗
8
9034008M0400
Plug, straight screw
Loading…
↗
9
688453411000
Plug, drain
Loading…
↗
10
904300802000
Gasket
Loading…
↗
11
6E5455360000
Sleeve, drive shaft
Loading…
↗
12
6E5453780000
Nipple, hose
Loading…
↗
13
9044507MF200
Hose (l250)
Loading…
↗
14
6E5835581000
End, nipple
Loading…
↗
15
6E5453210000
Plate
Loading…
↗
16
932105867700
O-ring(47x)
Loading…
↗
17
931060901400
Oil seal
Loading…
↗
18
9011906M1000
Bolt, with washer
Loading…
↗
19
6E5441500200
Shift cam assembly
Loading…
↗
20
934300800600
Circlip(2r6)
Loading…
↗
21
9050111M1000
Spring, compression (663)
Loading…
↗
22
61A455380000
Spacer, 1
Loading…
↗
23
9020122M0100
Washer, plate(61a)
Loading…
↗
24
9020622M1900
Washer, wave(61a)
Loading…
↗
25
61A455270000
Collar, drive shaft
Loading…
↗
26
61A443110100
Housing, water pump
Loading…
↗
27
61A443220200
Insert, cartridge
Loading…
↗
28
9321086M3800
O-ring (6e5)
Loading…
↗
29
932103716000
O-ring (6g8)
Loading…
↗
30
6E5443520100
Impeller
Loading…
↗
31
9028004M0500
Key, woodruff (6e5)
Loading…
↗
32
6E5443230000
Outer plate, cartridge
Loading…
↗
33
6E544315A000
Gasket,water pump
Loading…
↗
34
936061201900
Pin, dowel (614)
Loading…
↗
35
9011908M1400
Bolt, with washer
Loading…
↗
36
6E5453310094
Housing, bearing
Loading…
↗
37
9310128M1600
Oil seal (6e5)
Loading…
↗
38
93315430V500
Bearing, cylindrical(6k0)
Loading…
↗
39
6E5455876000
Shim (t:0.50mm)
Loading…
↗
40
93341930V200
Bearing, thrust(64d)
Loading…
↗
41
9321055M1400
O-ring (70e)
Loading…
↗
42
6E5453440000
Cover, oil seal
Loading…
↗
43
970950802500
Bolt (62g)
Loading…
↗
44
929950860000
Washer, plain (663)
Loading…
↗
45
68V455013000
Drive shaft comp.
Loading…
↗
46
68V455510000
Pinion
Loading…
↗
47
9017016M0100
Nut, hexagon (688)
Loading…
↗
48
68W455600000
Gear
Loading…
↗
49
93315425U700
Brg,cyl-cal roller (6e5)
Loading…
↗
50
6K1456110000
Shaft, Propeller
Loading…
↗
51
9020126M0000
Washer, plate(6k0)
Loading…
↗
52
6L6456112000
Shaft, Propeller
Loading…
↗
53
6E5456410200
Shifter
Loading…
↗
54
6E5456340100
Slide, shift
Loading…
↗
55
9050116M3700
Spring (6g5)
Loading…
↗
56
935073200900
Ball (12r)
Loading…
↗
57
935113202700
Ball (498)
Loading…
↗
58
935031600300
Ball
Loading…
↗
59
9025008M0700
Pin, straight (6g5)
Loading…
↗
60
68V456310000
Clutch, dog
Loading…
↗
61
6E5456330100
Ring, cross pin
Loading…
↗
62
6L6453320094
Housing, bearing
Loading…
↗
63
93332000V700
Bearing(6l6)
Loading…
↗
64
68W455700000
Gear
Loading…
↗
66
6L6455760000
Washer, thrust
Loading…
↗
67
93341440U500
Bearing, thrust (6k0)
Loading…
↗
68
6K1455786000
Shim (t:0.50mm)
Loading…
↗
69
93315440V600
Bearing, cylindrical(6k0)
Loading…
↗
70
93317330U500
Bearing
Loading…
↗
71
9310130M1700
Oil seal (6e5)
Loading…
↗
72
9321086M3900
O-ring (6e5)
Loading…
↗
73
6L6455776000
Shim (t:0.50mm)
Loading…
↗
74
902820401000
Key, strait(663)
Loading…
↗
75
688453830200
Washer, claw
Loading…
↗
76
688453840000
Nut
Loading…
↗
