50GETO (2000)
Lower Casing & Drive 4

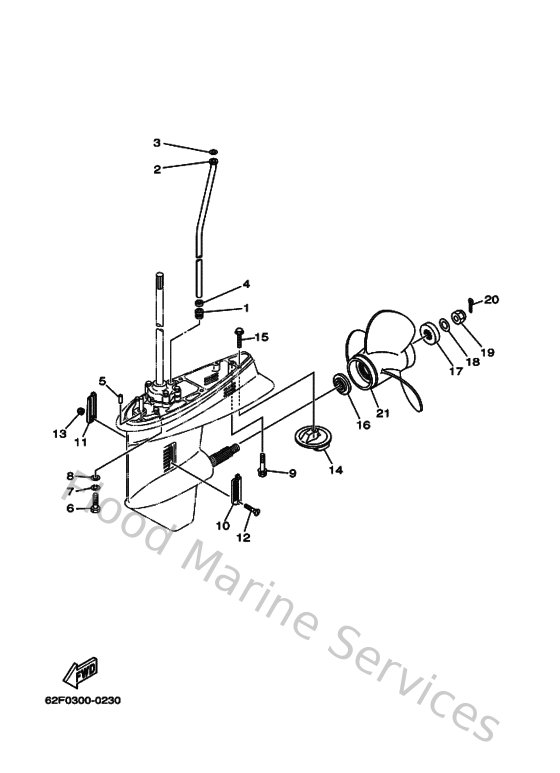

Diagram: Lower Casing & Drive 4
Parts List
Reference
Description
Price
1
663443670000
Damper, water seal 3
Loading…
↗
2
6H3443611000
Tube, water
Loading…
↗
3
902021206000
Washer, plate(663)
Loading…
↗
4
904301207200
Gasket
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
970751004000
Bolt, hexagon deep recess
Loading…
↗
7
929901010000
Ybs67-10 washer, spring
Loading…
↗
8
929901060000
Washer, plate
Loading…
↗
9
9011908M8400
Bolt, with washer
Loading…
↗
10
688452140200
Cover, water inlet
Loading…
↗
11
688452150200
Cover, water inlet
Loading…
↗
12
9015205M0500
Screw, countersunk
Loading…
↗
13
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
14
679453710000
Tab trim
Loading…
↗
15
9010510M6700
Bolt, hexagon (663)
Loading…
↗
16
663459870200
Spacer
Loading…
↗
17
670459970200
Spacer
Loading…
↗
18
929901620000
958-58204-00 washer,plain
Loading…
↗
19
901711601100
Nut, castle (663)
Loading…
↗
20
914904002500
Pin, cotter (663)
Loading…
↗
21
663459780000
Propeller (3x10-1/4"x16"-g)
Loading…
↗
