Yamaha Outboard Parts - Lower Casing & Drive 4 - FL115AET (2000) | Flood Marine

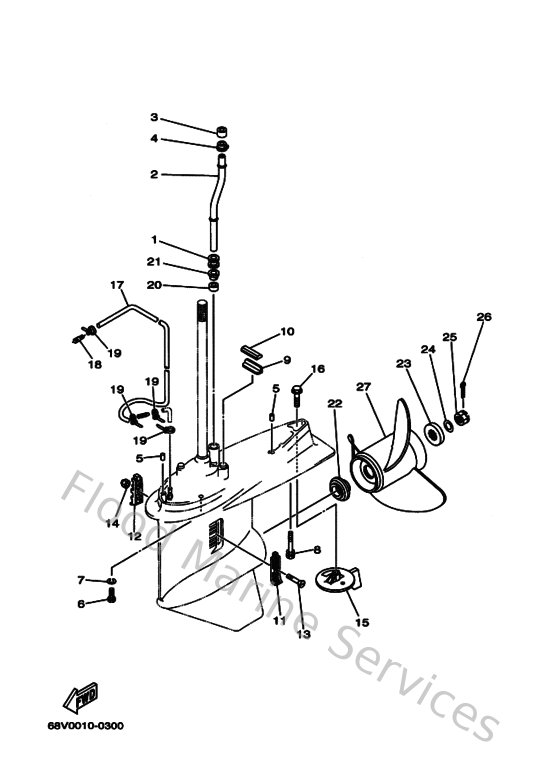

Diagram: Lower Casing & Drive 4

Diagram

Parts List

Reference
Description
Price


1
6E5443660000
Damper, water seal 2
Loading…

↗
2
68V443613000
Tube, water 1
Loading…

↗
3
6E5443650000
Damper, water seal 1
Loading…

↗
4
6E5443120000
Cover, water pump housing
Loading…

↗
5
9360812M0500
Pin, dowel b (6e5)
Loading…

↗
6
970751004500
Bolt(64d)
Loading…

↗
7
929951010000
Ybs67-10 washer, spring
Loading…

↗
8
9011910M8900
Bolt, with washer
Loading…

↗
9
663453760000
Guide, seal damper
Loading…

↗
10
688453750000
Damper, seal 2
Loading…

↗
11
688452140200
Cover, water inlet
Loading…

↗
12
688452150200
Cover, water inlet
Loading…

↗
13
9015205M0700
Screw, countersunk
Loading…

↗
14
901850500200
Nut nylon (sus)(ex4)
Loading…

↗
15
6L6453710000
Tab-trim
Loading…

↗
16
9010510M0000
Bolt, hexagon (663)
Loading…

↗
17
90445070G600
Hose (l1700)
Loading…

↗
18
6E5835580000
End, nipple
Loading…

↗
19
9046511M1000
Clamp
Loading…

↗
22
6E5459870100
Spacer 1
Loading…

↗
23
688459970100
Spacer 2
Loading…

↗
24
929901820000
Washer (6e5)
Loading…

↗
25
9017118M0400
Nut, castle (6e5)
Loading…

↗
26
914904003000
Pin, cotter (663)
Loading…

↗
27
6L6459300198
Propeller (3x13"x17"-kl)
Loading…

↗
