Yamaha Outboard Parts - Lower Casing & Drive 4 - LZ150PETO (2000) | Flood Marine

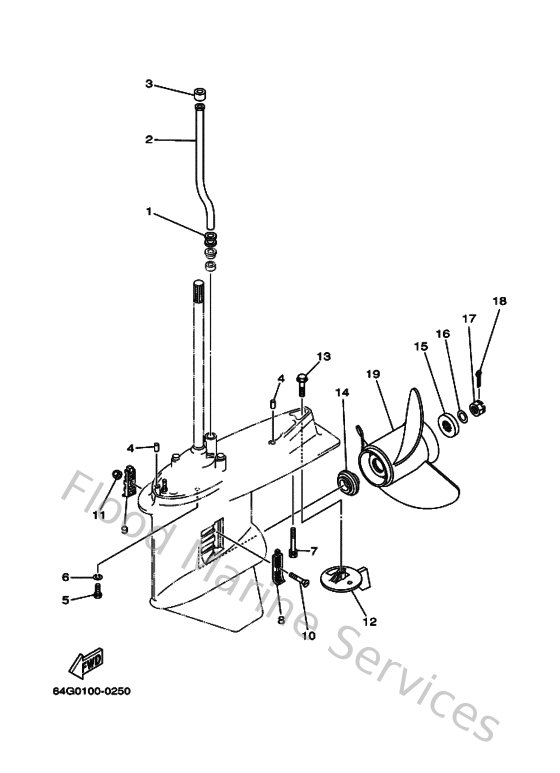

Diagram: Lower Casing & Drive 4

Diagram

Parts List

Reference
Description
Price


1
6E5443660000
Damper, water seal 2
Loading…

↗
2
6E5443612000
Tube, water
Loading…

↗
3
6E5443650000
Damper, water seal 1
Loading…

↗
4
9360812M0500
Pin, dowel b (6e5)
Loading…

↗
5
970751004500
Bolt(64d)
Loading…

↗
6
929951010000
Ybs67-10 washer, spring
Loading…

↗
7
9011910M8900
Bolt, with washer
Loading…

↗
8
6J9452140000
Cover, water inlet
Loading…

↗
9
6J9452150000
Cover, water inlet
Loading…

↗
10
9015205M0800
Screw, countersunk
Loading…

↗
11
901850500200
Nut nylon (sus)(ex4)
Loading…

↗
12
6K1453710200
Tab-trim
Loading…

↗
13
9010510M0000
Bolt, hexagon (663)
Loading…

↗
14
6E5459870100
Spacer 1
Loading…

↗
15
688459970100
Spacer 2
Loading…

↗
16
929901820000
Washer (6e5)
Loading…

↗
17
9017118M0400
Nut, castle (6e5)
Loading…

↗
18
914904003000
Pin, cotter (663)
Loading…

↗
19
6R145976A000
Propeller (3X15-1/4"X15"-Ml)
Loading…

↗
