20DMHO (2001)
Lower Casing. Drive 2

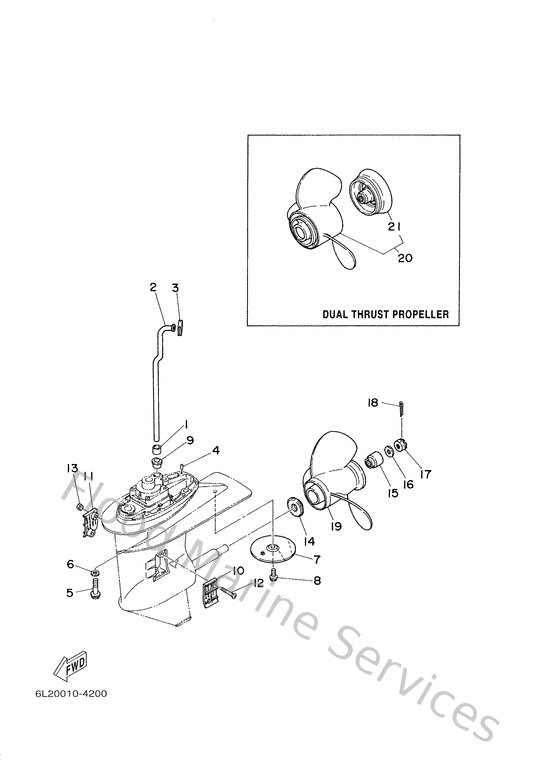

Diagram: Lower Casing. Drive 2
Parts List
Reference
Description
Price
1
6L2443680000
Rubber, water seal 4
Loading…
↗
2
6L2443610000
Tube, water
Loading…
↗
3
6L2443660000
Damper, water seal 2
Loading…
↗
4
9360412M0700
Pin, dowel (688)
Loading…
↗
5
9010510M1200
Bolt (689)
Loading…
↗
6
929901060000
Washer, plate
Loading…
↗
7
664453710100
Tab-trim
Loading…
↗
8
9010508M0200
Bolt hexagon
Loading…
↗
9
6L2443670000
Damper, water seal 3
Loading…
↗
10
6L2452140000
Cover, water inlet
Loading…
↗
11
6L2452150000
Cover, water inlet
Loading…
↗
12
9015105M0500
Screw, countersunk
Loading…
↗
13
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
14
6L2459870100
Spacer
Loading…
↗
15
689459970000
Spacer
Loading…
↗
16
929901420000
Washer, plain
Loading…
↗
17
901711401300
Nut(664)
Loading…
↗
18
914903003000
Pin, cotter
Loading…
↗
19
664459720098
Propeller (3x9-1/8 x12 -f)
Loading…
↗
20
6J8W459100EL
Propeller (3x10-5/8"x8-1/4"-f)
Loading…
↗
21
6J8459861098
Ring, deflector
Loading…
↗
