115BETO (2002)
METER

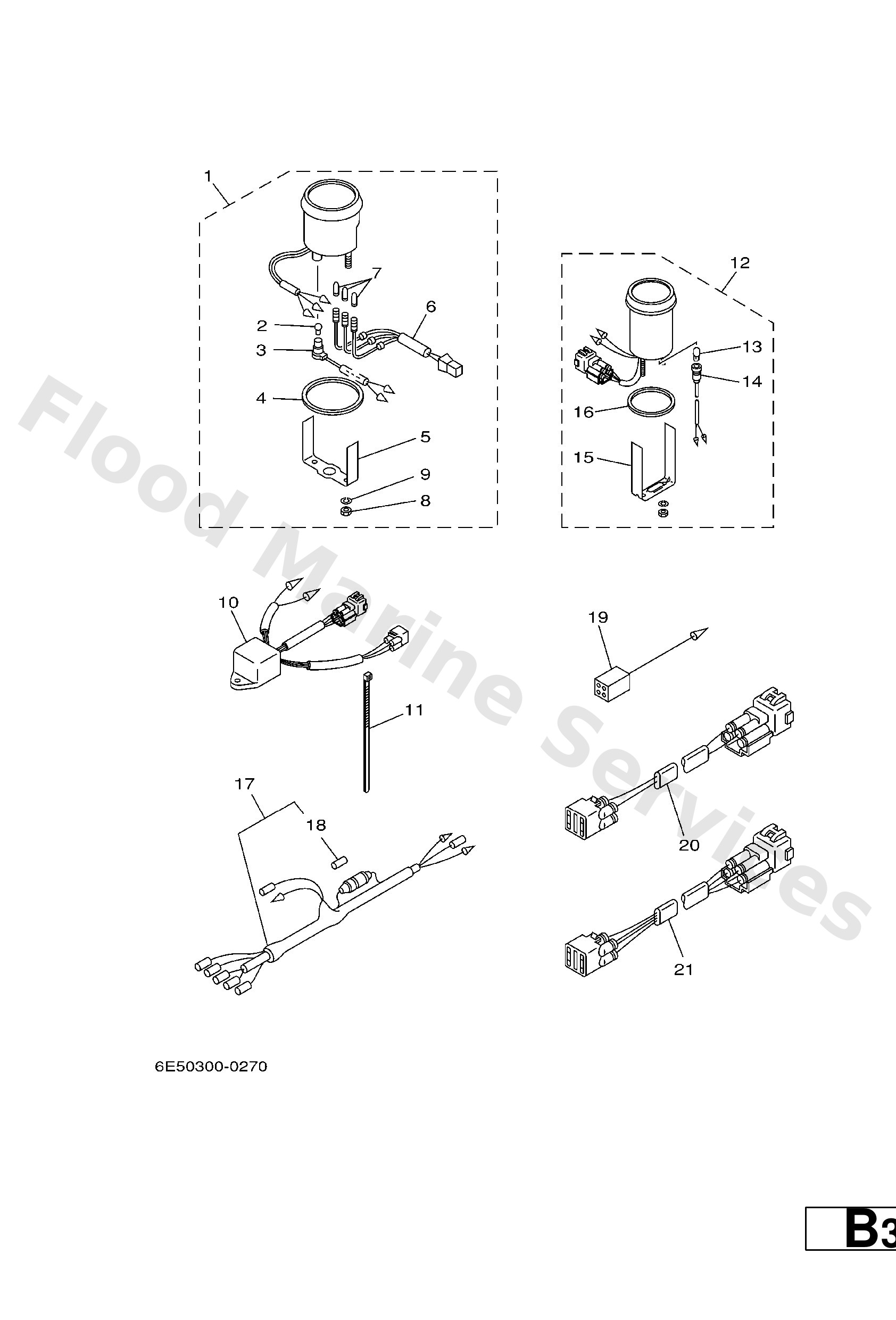

Diagram: METER
Parts List
Reference
Description
Price
1
6Y58354005
AP WITH OIL LAMP
Tachometer assembly
Loading…
↗
2
6Y58351700
Bulb (12v-1.7w)
Loading…
↗
3
6Y58353610
Socket, meter
Loading…
↗
4
6Y58352300
Damper
Loading…
↗
5
6Y58351400
Plate, fitting
Loading…
↗
6
6Y58350903
Socket cord assembly
Loading…
↗
7
6Y58351800
Bulb (12v-1.7w) t6.5
Loading…
↗
8
9530305600
Nut, hexagon (663)
Loading…
↗
9
9290305100
Ybs67-5 washer, spring
Loading…
↗
10
6Y58195002
AP
Relay assembly
Loading…
↗
11
9046513M18
AP
Clamp
Loading…
↗
12
6Y58367012
AP
Trim meter assembly.
Loading…
↗
14
6Y58353600
Socket, meter
Loading…
↗
15
6Y58354400
Plate, fitting
Loading…
↗
16
6888366400
Damper
Loading…
↗
17
6Y58355300
AP
Wire, lead (l=2.5m)
Loading…
↗
18
1E68215100
Fuse (10a)
Loading…
↗
19
6Y58211700
AP
Wire, lead
Loading…
↗
20
6R38252170
AP
Wire, lead (for tacho., 7m)
Loading…
↗
21
6R38255370
AP
Extension, wire lead (for trim
Loading…
↗
