200GETO (2003)
METER

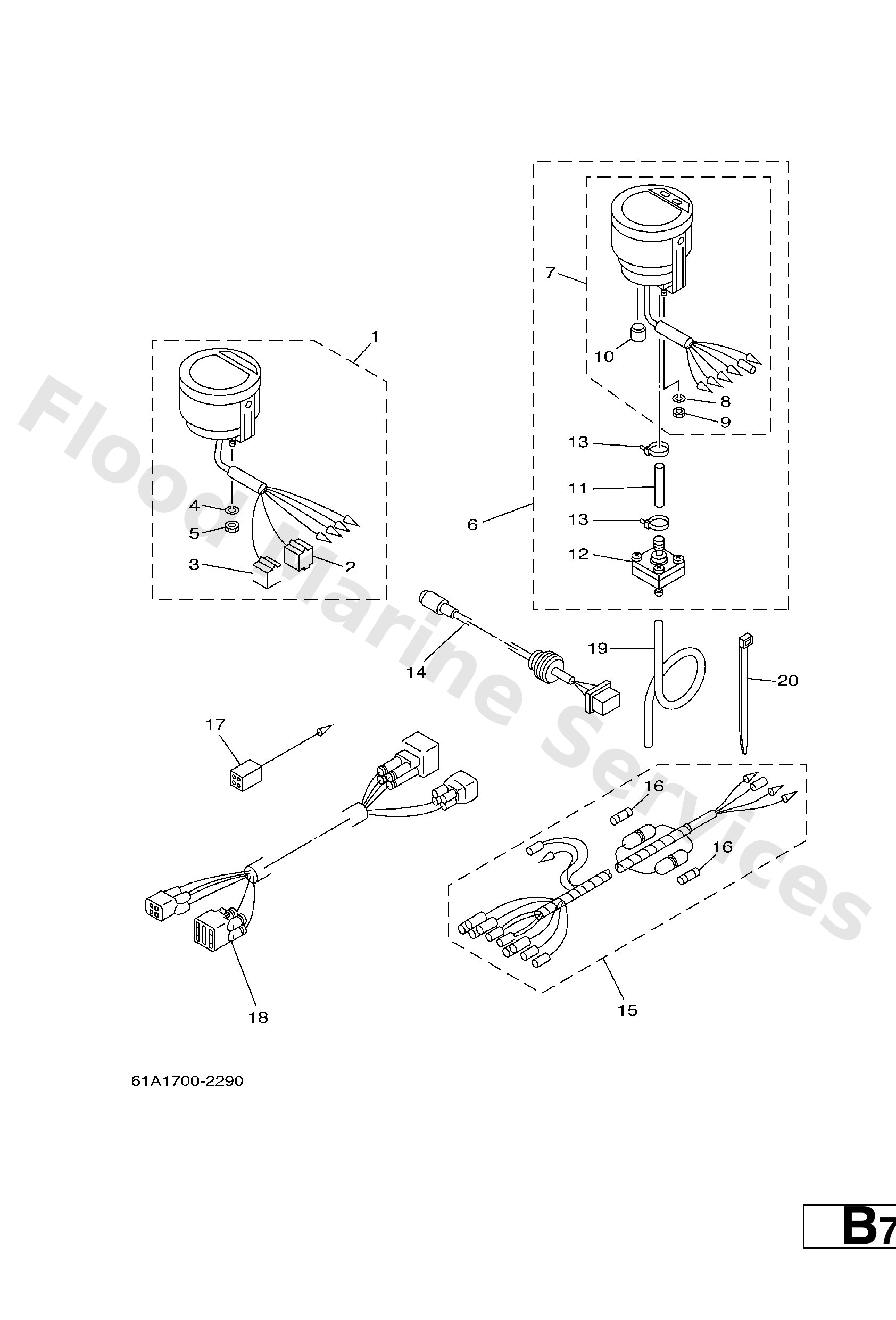

Diagram: METER
Parts List
Reference
Description
Price
1
6Y5−8350T−02
AP
Digital tachometer assembly
Loading…
↗
2
9E450−04433
M−4−W
Housing, connector (m-4-w)
Loading…
↗
3
9E450−04533
F−4−W
Housing, f-4-w(5pcs)
Loading…
↗
4
92990−04100
Ybs67-4 washer, spring
Loading…
↗
5
95380−04600
Nut,hex
Loading…
↗
6
6Y5−83500−S5
AP
37 −
Loading…
↗
7
6Y5−83570−S5
Speedometer assembly
Loading…
↗
10
6Y5−83533−T2
Grommet
Loading…
↗
11
6Y5−83557−31
37 −
Loading…
↗
12
6Y5−83728−00
Connector assembly
Loading…
↗
20
90465−11M10
AP
Clamp
Loading…
↗
14
6Y5−87122−S0
AP
Cord assembly 1
Loading…
↗
15
6Y5−83553−M0
AP
Wire, lead (l=2.5m)
Loading…
↗
16
1E6−82151−00
Fuse (10a)
Loading…
↗
17
6Y5−82117−00
AP
Wire, lead
Loading…
↗
18
68F−82553−80
AP
Extension, wire lead (8m)
Loading…
↗
19
6Y5−83557−10
AP
Tube (8m)
Loading…
↗
