Yamaha Outboard Parts - METER - 225DET (2009) | Flood Marine

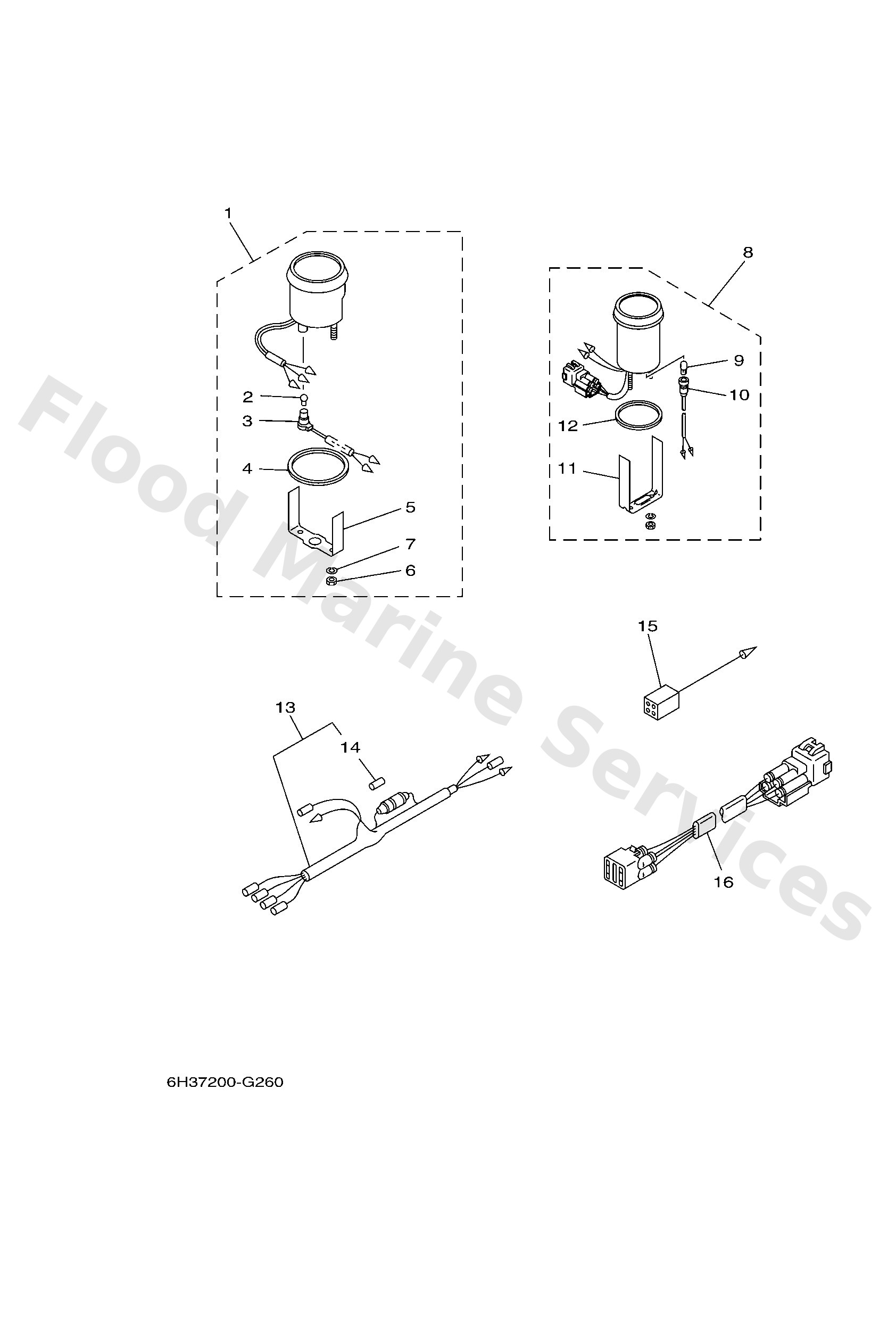

Diagram: METER

Diagram

Parts List

Reference
Description
Price


1
6Y78354020 AP WITHOUT OIL LAMP
Tachometer assembly
Loading…

↗
2
6Y58351700
Bulb (12v-1.7w)
Loading…

↗
3
6Y58353640
Socket, meter
Loading…

↗
4
6Y58352300
Damper
Loading…

↗
5
6Y58351400
Plate, fitting
Loading…

↗
6
9538005600
Nut, hexagon (663)
Loading…

↗
7
9299005100
Ybs67-5 washer, spring
Loading…

↗
8
6Y78367000 AP
Trim meter assembly.
Loading…

↗
9
6Y58351800
Bulb (12v-1.7w) t6.5
Loading…

↗
10
6Y58353600
Socket, meter
Loading…

↗
11
6Y58354400
Plate, fitting
Loading…

↗
12
6888366400
Damper
Loading…

↗
13
6Y58355300 AP
Wire, lead (l=2.5m)
Loading…

↗
14
1E68215100
Fuse (10a)
Loading…

↗
15
6Y58211700 AP
Wire, lead
Loading…

↗
16
6R38255370 AP (4P)
Extension, wire lead (for trim
Loading…

↗
