30DMHO (1999)
METER

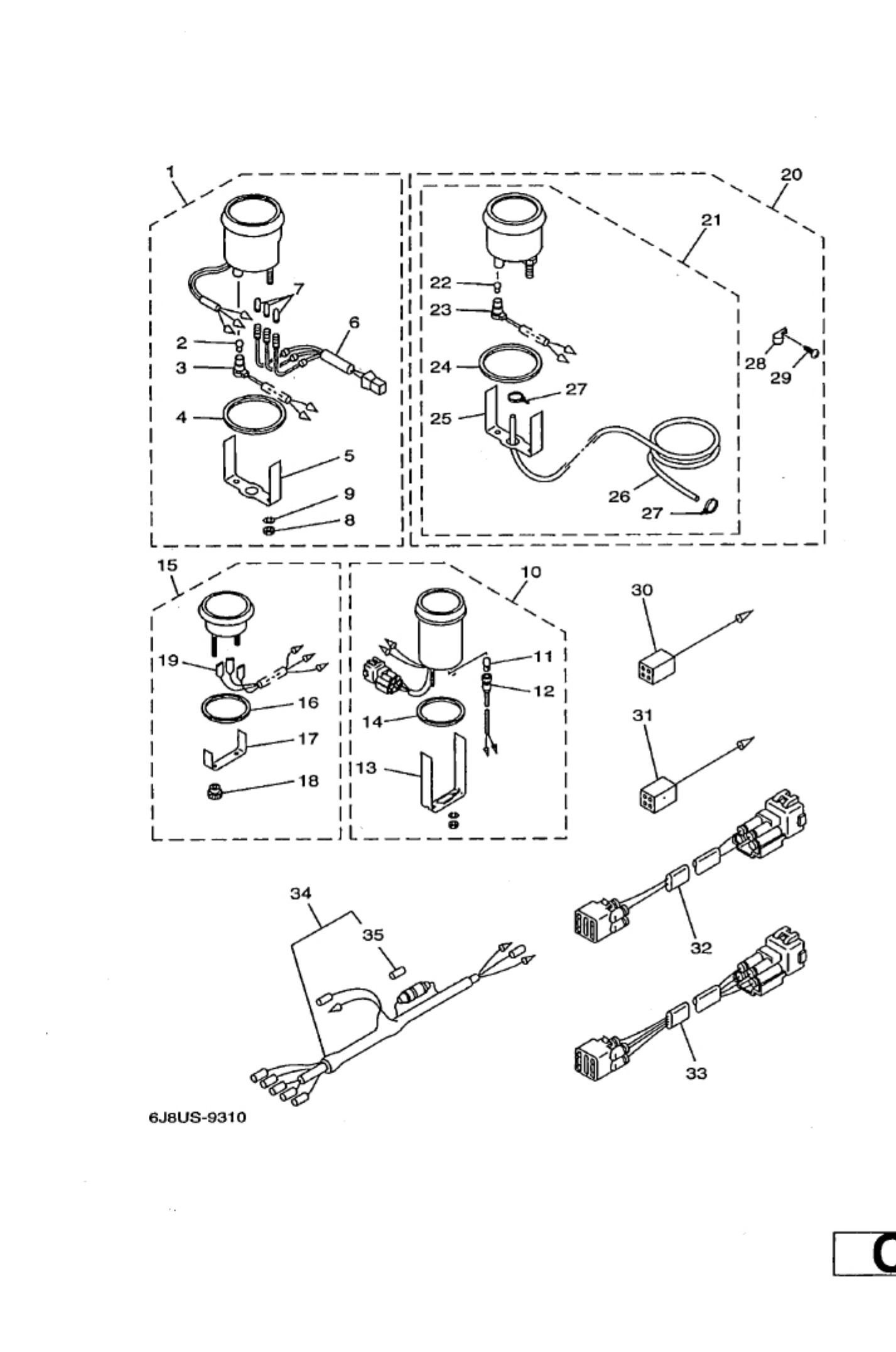

Diagram: METER
Parts List
Reference
Description
Price
1
6Y58354005
11] a] | [won tame
Tachometer assembly
Loading…
↗
2
6Y56351700
T10) [EIR
Bulb (12V-1.7W,
Loading…
↗
3
6Y59353610
[IEIRIR
Socket, Meter
Loading…
↗
4
6Y58352300
[RIKI]
Damper
Loading…
↗
5
6Y5-8351400
[RINE]
Plate, fitting
Loading…
↗
6
656350903
EINE
Socket Cord assembly
Loading…
↗
7
6Y58351800
T6.5) a af 3| 3
Bulb (12v-1.7w) t6.5
Loading…
↗
8
9538005600
2| 2] 2| 2
Nut, hexagon (663)
Loading…
↗
9
9209005100
2| 2| 2| 2
Washer, Spring
Loading…
↗
10
6Y58367011
Trim Meter assembly.
Loading…
↗
11
656351800
Bulb (12V-1.7W, T6.5)
Loading…
↗
12
6Y58353600
Socket, meter
Loading…
↗
13
6Y58367700
Plate, Fitting
Loading…
↗
14
6888366400
Damper
Loading…
↗
15
6Y58350410
HEIRIE!
Hour meter assembly (digital)
Loading…
↗
17
6Y58351410
[IRIEIE
Plate, Fitting
Loading…
↗
18
6Y58355410
2| 2| 2| 2
Loading…
↗
19
6Y58350U00
[Eine
Loading…
↗
20
6Y5W008130
-
Loading…
↗
21
656351030
if
Speedometer assembly'
Loading…
↗
22
6Y58351700
Bulb (12v-1.7w)
Loading…
↗
23
6V58353610
[EINE
Socket, Meter
Loading…
↗
24
6Y58352000
[EINE
Damper
Loading…
↗
25
6Y58351400
[IEIRIE!
Plate, fitting
Loading…
↗
27
9046511M10
Clamp
Loading…
↗
28
9060131402
5| 5| 5 5
021-58119-01 clip,nylon 14
Loading…
↗
29
9778040116
5( 5( 5| 5
Screw,panh.tapping
Loading…
↗
30
6Y58211700
2| 2| 2} 2
Wire, lead
Loading…
↗
31
6Y58252100
HRIEIE!
Wire, lead
Loading…
↗
32
6R38252170
Wire, lead (for tacho., 7m)
Loading…
↗
34
6Y58355300
LRIRIE
Wire, lead (l=2.5m)
Loading…
↗
35
1E68215100
LRIRIE!
Fuse (10a)
Loading…
↗
