Yamaha Outboard Parts - METER - 40VEO (2009) | Flood Marine

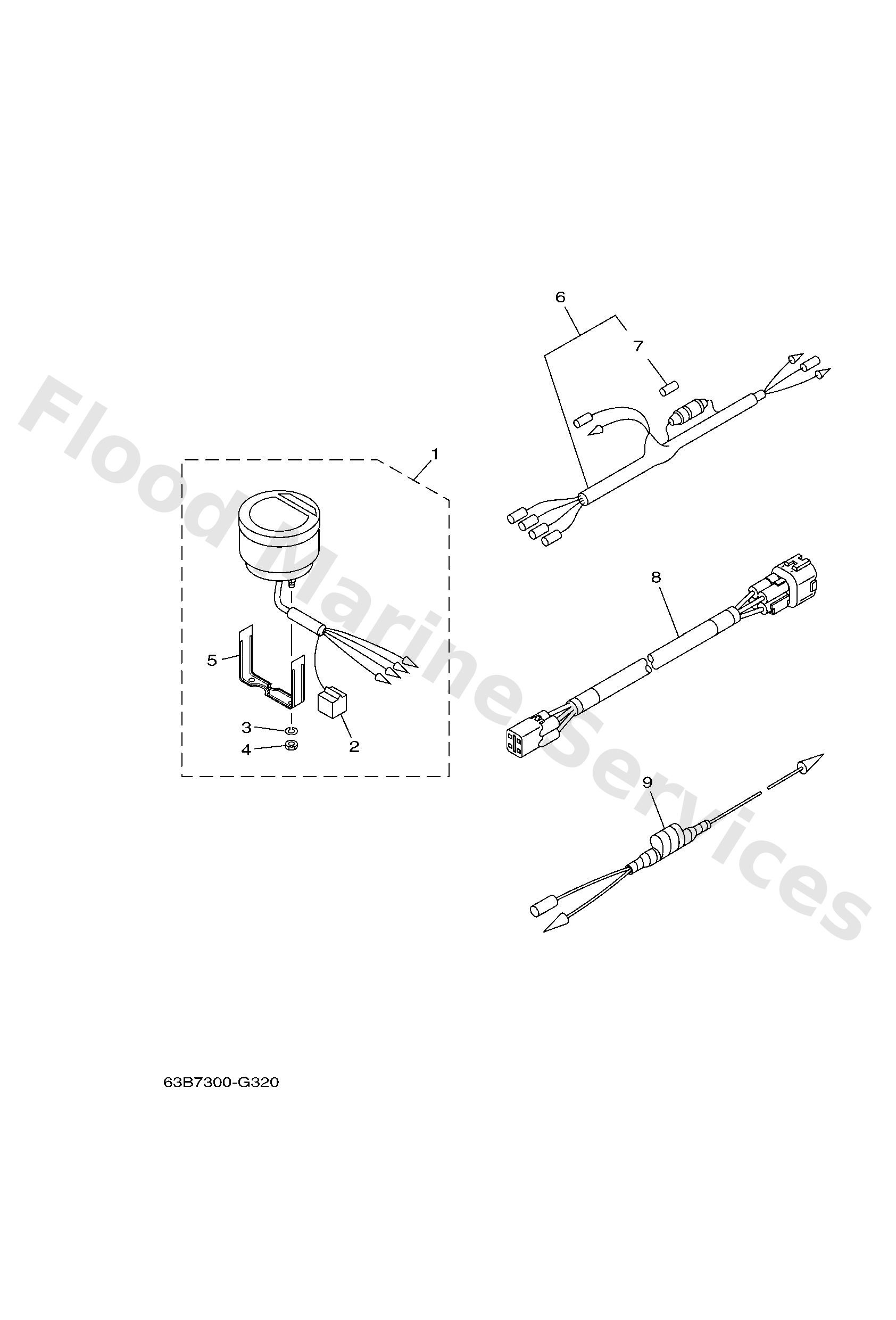

Diagram: METER

Diagram

Parts List

Reference

Description

Price

1

6Y58350T90 AP 40Y

Tachometer assembly

Loading…

2

9E45004533 F-4-W

Housing, f-4-w(5pcs)

Loading…

3

9299004100

Ybs67-4 washer, spring

Loading…

4

9538004600

Loading…

5

6Y58355XT1

Bracket, meter 1

Loading…

6

6Y58355300 AP 40Y

Wire, lead (l=2.5m)

Loading…

7

1E68215100

Loading…

8

6Y58365320 AP 40Y 4P,7M

Loading…

9

6H48131511 AP 40Y

Lead wire assembly

Loading…
