Yamaha Outboard Parts - METER - 50GETO (2007) | Flood Marine

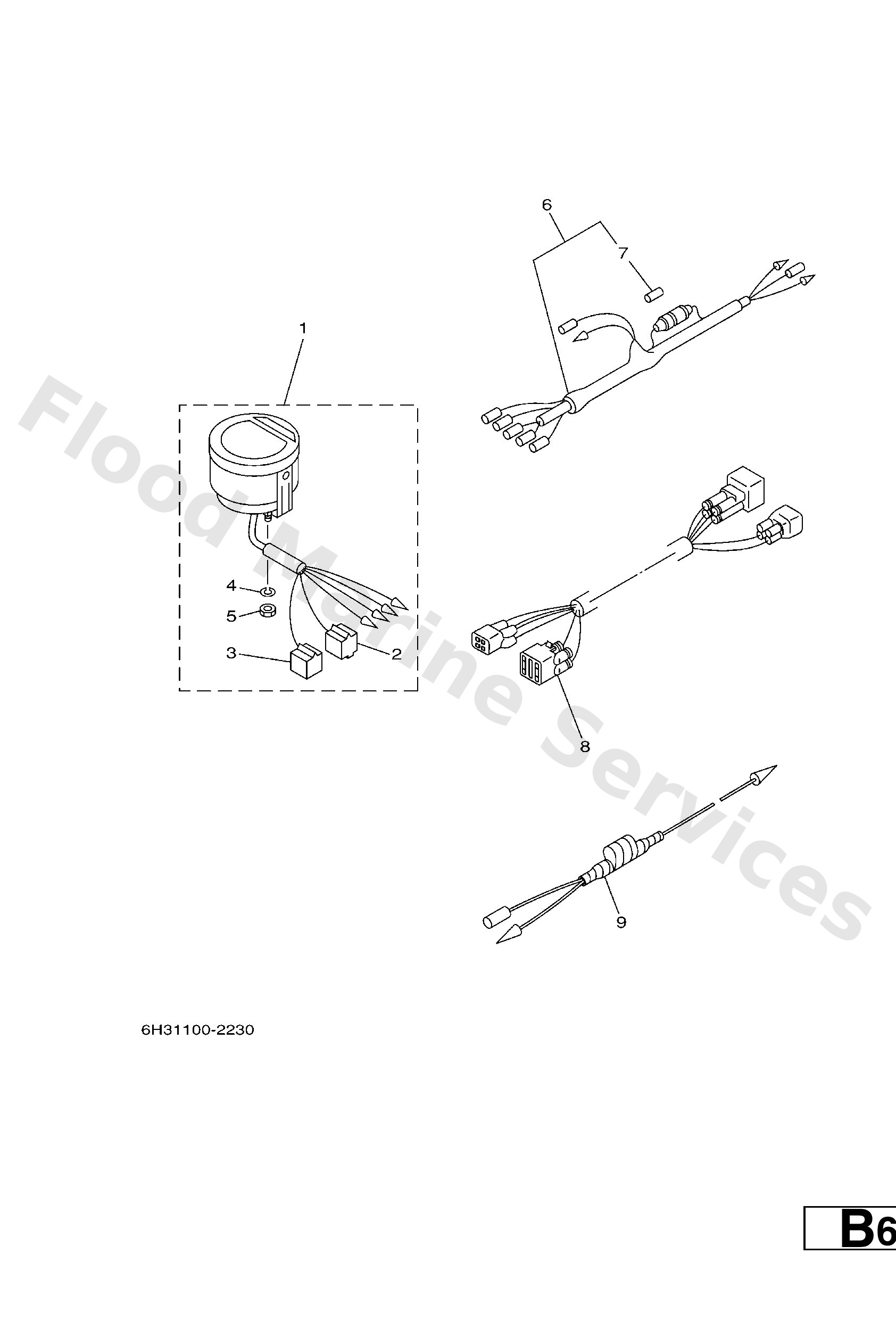

Diagram: METER

Diagram

Parts List

Reference

Description

Price

1

6Y58350T03 AP

Digital tachometer assembly

Loading…

2

9E45004433 M-4-W

Housing, connector (m-4-w)

Loading…

3

9E45004533 F-4-W

Housing, f-4-w(5pcs)

Loading…

4

9299004100

Ybs67-4 washer, spring

Loading…

5

9538004600

Loading…

6

6Y58355300 AP

Wire, lead (l=2.5m)

Loading…

7

1E68215100

Loading…

8

68F8255370 AP

Extension, wire lead (7m)

Loading…

9

6H48131511 AP

Lead wire assembly

Loading…
