90AETO (2015)
METER

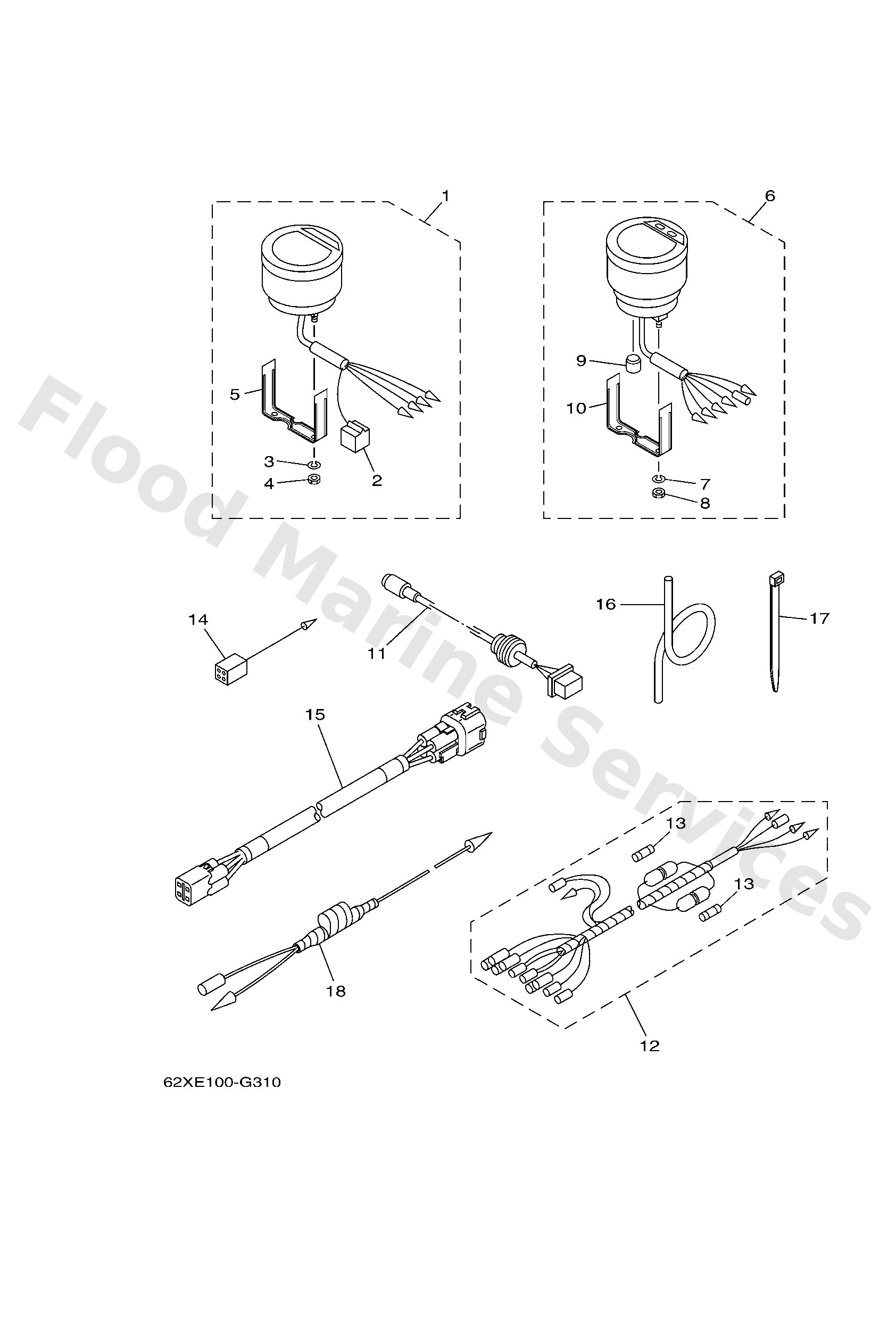

Diagram: METER
Parts List
Reference
Description
Price
1
6Y58350T91
AP
Tachometer assembly
Loading…
↗
2
9E45004533
F-4-W
Housing, f-4-w(5pcs)
Loading…
↗
3
9299004100
Ybs67-4 washer, spring
Loading…
↗
4
9538004600
Nut,hex
Loading…
↗
5
6Y58355XT1
Bracket, meter 1
Loading…
↗
6
6Y583570S6
AP
Speedometer assembly
Loading…
↗
9
6Y583533T2
Grommet
Loading…
↗
11
6Y587122S0
AP
Cord assembly 1
Loading…
↗
12
6Y58355300
AP
Wire, lead (l=2.5m)
Loading…
↗
12
6Y583553M0
AP
Wire, lead (l=2.5m)
Loading…
↗
13
1E68215100
FOR 6Y5-83553-00
Fuse (10a)
Loading…
↗
14
6Y58211700
AP
Wire, lead
Loading…
↗
15
6Y58365320
AP 4P,7M
Wire, lead
Loading…
↗
15
6Y58365330
AP 4P,8M
Wire, lead
Loading…
↗
16
6Y58355710
AP
Tube (8m)
Loading…
↗
17
9046511M10
AP
Clamp
Loading…
↗
18
6H48131511
AP
Lead wire assembly
Loading…
↗
