Yamaha Outboard Parts - METER - F40CET (2002) | Flood Marine

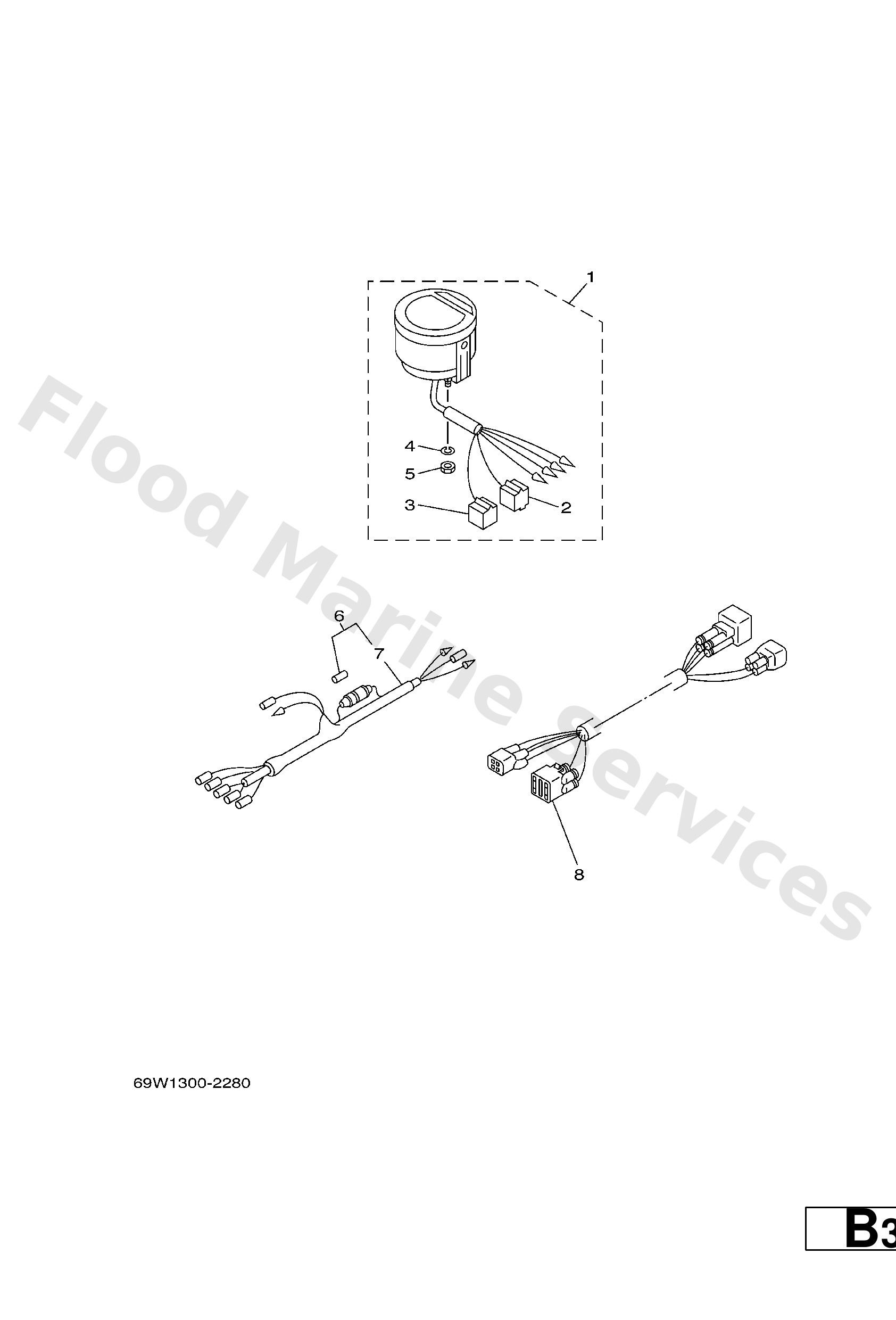

Diagram: METER

Diagram

Parts List

Reference

Description

Price

1

6Y5−8350T−01 AP

Digital tachometer assembly

Loading…

2

9E450−04433 M−4−W

Housing, connector (m-4-w)

Loading…

3

9E450−04533 F−4−W

Housing, f-4-w(5pcs)

Loading…

4

Ybs67-4 washer, spring

Loading…

5

Loading…

6

6Y5−83553−00 AP

Wire, lead (l=2.5m)

Loading…

7

1E6−82151−00

Loading…

8

68F−82553−70 AP

Extension, wire lead (7m)

Loading…
