LZ250TRC (2004)
METER

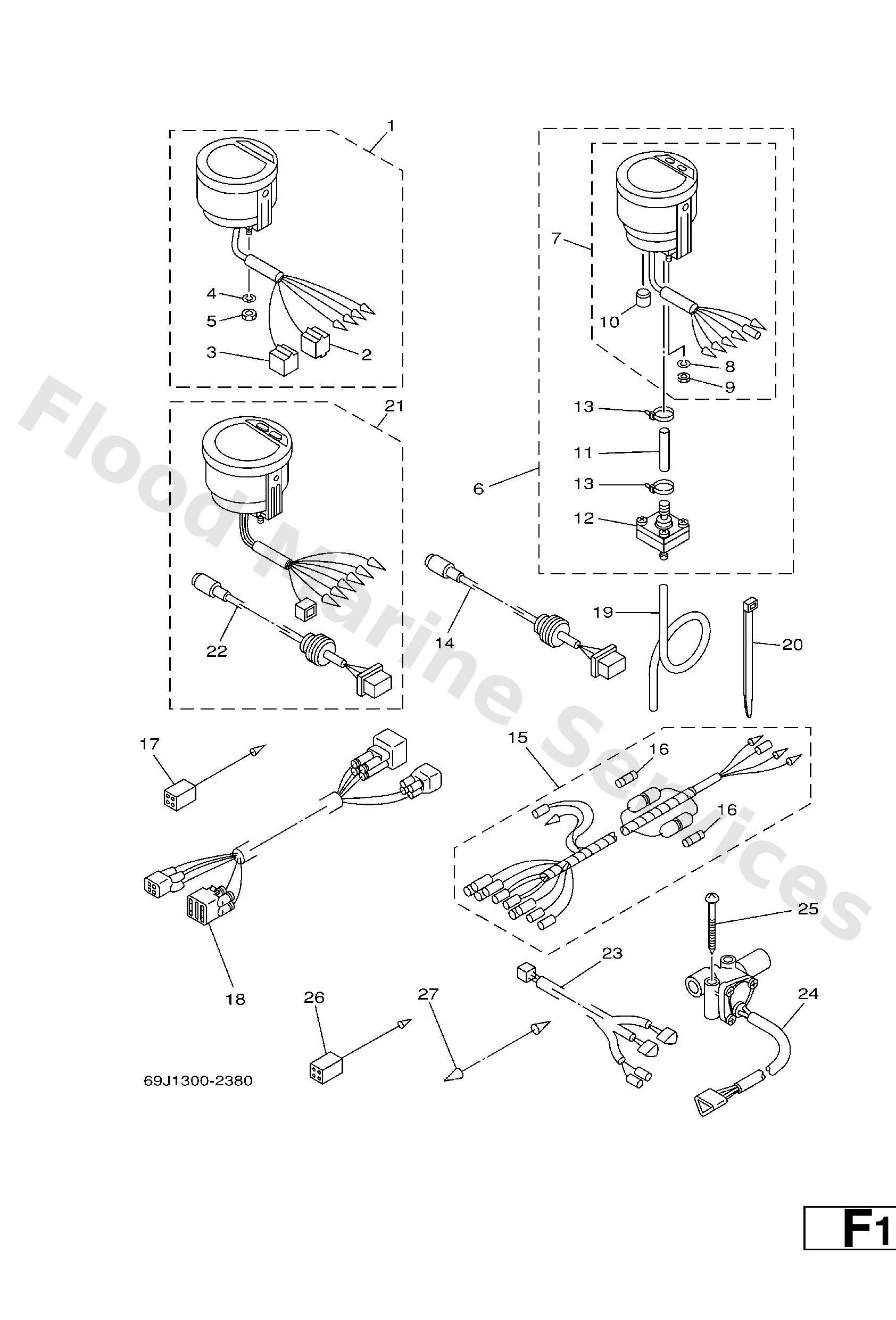

Diagram: METER
Parts List
Reference
Description
Price
1
6Y58350T03
AP
Digital tachometer assembly
Loading…
↗
2
9E45004433
M-4-W
Housing, connector (m-4-w)
Loading…
↗
3
9E45004533
F-4-W
Housing, f-4-w(5pcs)
Loading…
↗
4
9299004100
Ybs67-4 washer, spring
Loading…
↗
5
9538004600
Nut,hex
Loading…
↗
6
6Y583500S5
AP
Digital Speedometer assembly
Loading…
↗
7
6Y583570S5
Speedometer assembly
Loading…
↗
10
6Y583533T2
Grommet
Loading…
↗
11
6Y58355731
-
Loading…
↗
12
6Y58372800
-
Loading…
↗
20
9046511M10
AP
Clamp
Loading…
↗
14
6Y587122S0
AP
Cord assembly 1
Loading…
↗
15
6Y58355300
AP
Wire, lead (l=2.5m)
Loading…
↗
15
6Y583553M0
AP
Wire, lead (l=2.5m)
Loading…
↗
16
1E68215100
FOR 6Y5-83553-M0
Fuse (10a)
Loading…
↗
17
6Y58211700
AP
Wire, lead
Loading…
↗
18
68F8255380
AP
Extension, wire lead (8m)
Loading…
↗
18
68F8255390
AP
Extension, wire lead (9m)
Loading…
↗
19
6Y58355710
AP FOR BRA
Tube (8m)
Loading…
↗
19
6Y58355700
AP FOR CAR,VEN
Tube (8m)
Loading…
↗
21
6Y58350F00
AP FOR BRA
Fuel meter movement assembly
Loading…
↗
23
6Y583553F1
AP FOR BRA
Wire, lead
Loading…
↗
24
6Y58575201
AP FOR BRA
Sender unit assembly, fuel meter
Loading…
↗
25
9015806002
AP FOR BRA
Screw, Wood
Loading…
↗
27
7038253100
AP FOR BRA
Wire, lead
Loading…
↗
