Yamaha Outboard Parts - METER - VZ200TR2 (2005) | Flood Marine
New Search
Parts
New Outboards
Home
VZ200TR2 (2005)
METER

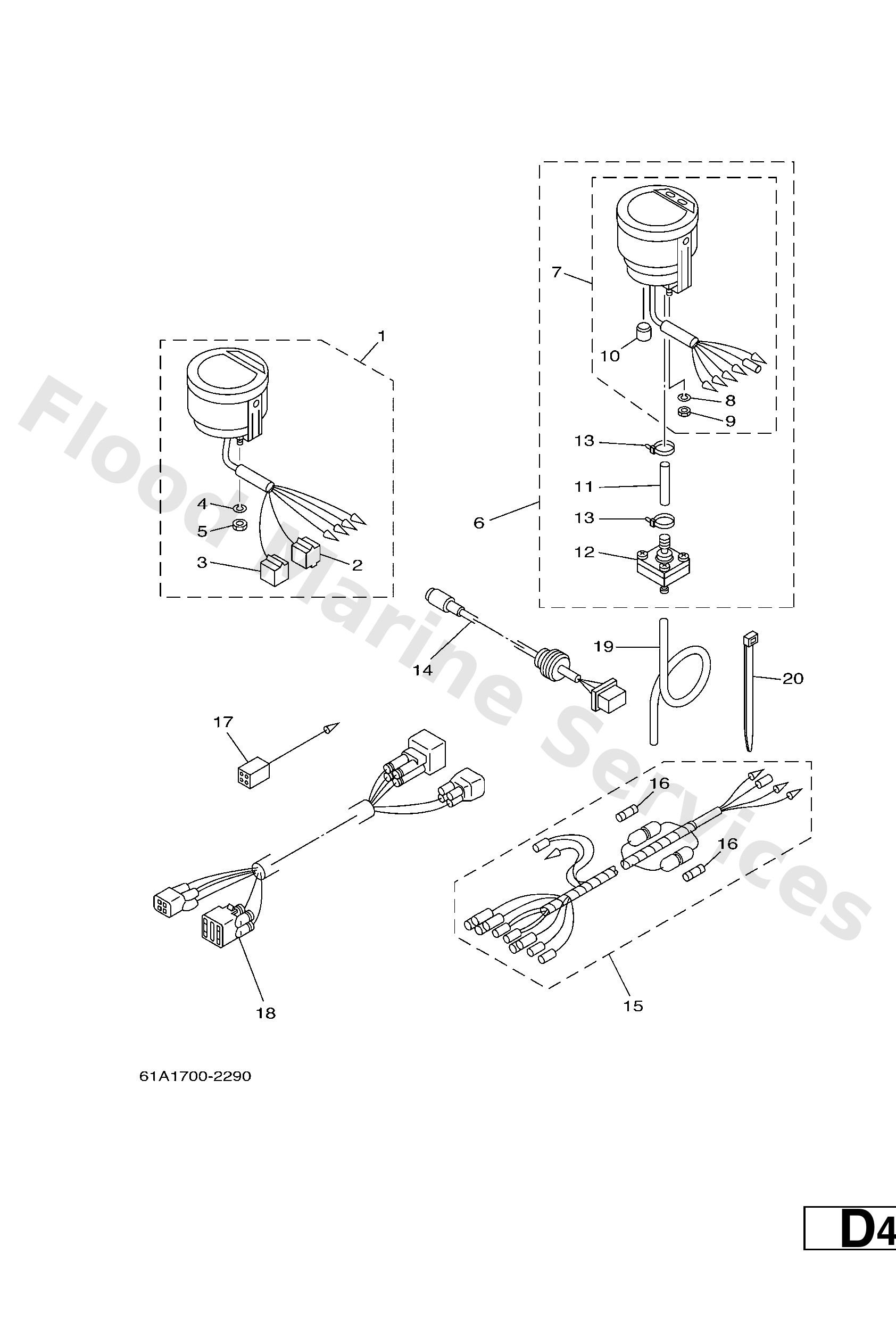

Diagram: METER
Parts List
Reference
Description
Price
1
6Y58350T03
AP FOR OCE
Digital tachometer assembly
Loading…
↗
2
9E45004433
M-4-W
Housing, connector (m-4-w)
Loading…
↗
3
9E45004533
F-4-W
Housing, f-4-w(5pcs)
Loading…
↗
4
9299004100
Ybs67-4 washer, spring
Loading…
↗
5
9538004600
Nut,hex
Loading…
↗
6
6Y583500S5
AP FOR OCE
Digital Speedometer assembly
Loading…
↗
7
6Y583570S5
Speedometer assembly
Loading…
↗
10
6Y583533T2
Grommet
Loading…
↗
11
6Y58355731
-
Loading…
↗
12
6Y58372800
-
Loading…
↗
20
9046511M10
AP FOR OCE
Clamp
Loading…
↗
14
6Y587122S0
AP FOR OCE
Cord assembly 1
Loading…
↗
15
6Y583553M0
AP FOR OCE
Wire, lead (l=2.5m)
Loading…
↗
16
1E68215100
Fuse (10a)
Loading…
↗
17
6Y58211700
AP FOR OCE
Wire, lead
Loading…
↗
18
68F8255380
AP FOR OCE
Extension, wire lead (8m)
Loading…
↗
19
6Y58355710
AP FOR OCE
Tube (8m)
Loading…
↗
