VZ200TRC (2004)
METER

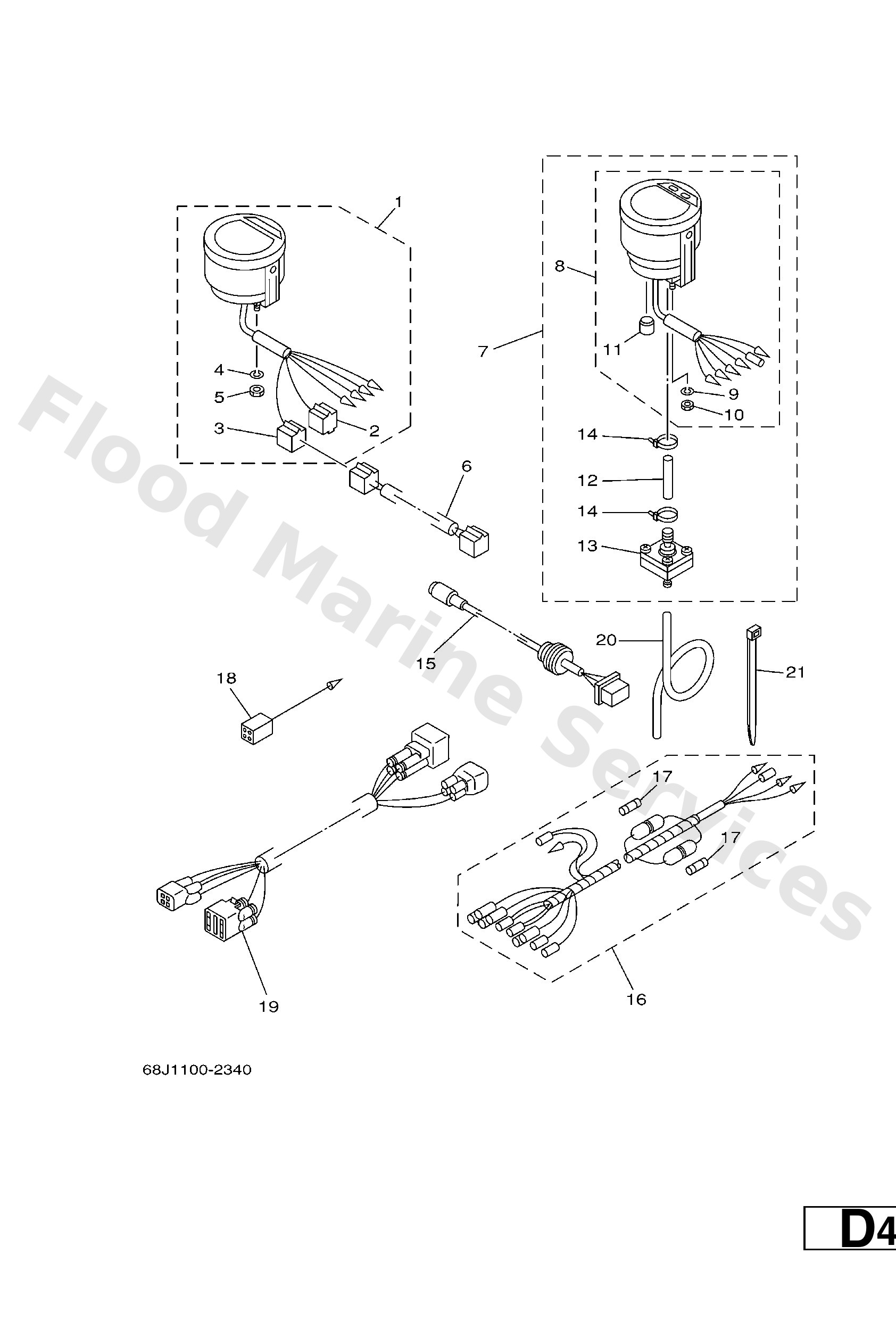

Diagram: METER
Parts List
Reference
Description
Price
1
6Y58350T03
AP
Digital tachometer assembly
Loading…
↗
2
9E45004433
M-4-W
Housing, connector (m-4-w)
Loading…
↗
3
9E45004533
F-4-W
Housing, f-4-w(5pcs)
Loading…
↗
4
9299004100
Ybs67-4 washer, spring
Loading…
↗
5
9538004600
Nut,hex
Loading…
↗
6
6Y58355380
AP
Wire, Lead
Loading…
↗
7
6Y583500S5
AP
Digital Speedometer assembly
Loading…
↗
8
6Y583570S5
Speedometer assembly
Loading…
↗
11
6Y583533T2
Grommet
Loading…
↗
12
6Y58355731
-
Loading…
↗
13
6Y58372800
-
Loading…
↗
21
9046511M10
AP
Clamp
Loading…
↗
15
6Y587122S0
AP
Cord assembly 1
Loading…
↗
16
6Y583553M0
AP
Wire, lead (l=2.5m)
Loading…
↗
17
1E68215100
Fuse (10a)
Loading…
↗
18
6Y58211700
AP
Wire, lead
Loading…
↗
19
68F8255380
AP
Extension, wire lead (8m)
Loading…
↗
20
6Y58355710
AP
Tube (8m)
Loading…
↗
