FT50CED (2003)
METER 1

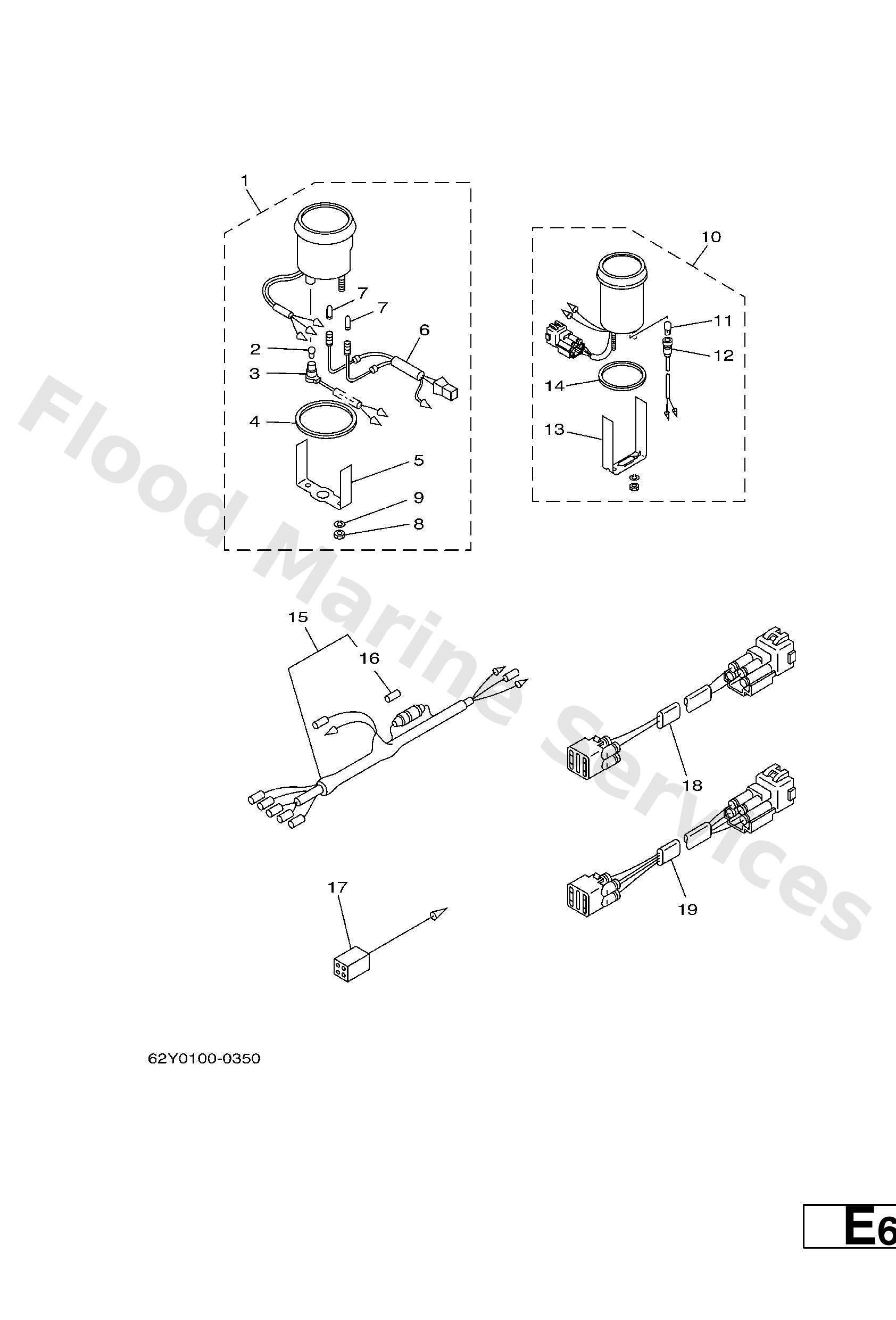

Diagram: METER 1
Parts List
Reference
Description
Price
1
6Y5−83540−20
AP
Tachometer assembly
Loading…
↗
2
6Y5−83517−00
Bulb (12v-1.7w)
Loading…
↗
3
6Y5−83536−10
Socket, meter
Loading…
↗
4
6Y5−83523−00
Damper
Loading…
↗
5
6Y5−83514−00
Plate, fitting
Loading…
↗
6
6Y5−83509−10
Socket cord assembly
Loading…
↗
7
6Y5−83518−00
Bulb (12v-1.7w) t6.5
Loading…
↗
8
95380−05600
Nut, hexagon (663)
Loading…
↗
9
92990−05100
Ybs67-5 washer, spring
Loading…
↗
10
6Y5−83670−12
AP
Trim meter assembly.
Loading…
↗
12
6Y5−83536−00
Socket, meter
Loading…
↗
13
6Y5−83544−00
Plate, fitting
Loading…
↗
14
688−83664−00
Damper
Loading…
↗
15
6Y5−83553−00
AP
Wire, lead (l=2.5m)
Loading…
↗
16
1E6−82151−00
Fuse (10a)
Loading…
↗
17
6Y5−82117−00
AP
Wire, lead
Loading…
↗
18
6R3−82521−70
AP 7M
Wire, lead (for tacho., 7m)
Loading…
↗
19
6R3−82553−70
AP 4P,7M
Extension, wire lead (for trim
Loading…
↗
