RIGGING - METER (2008)
METER 1

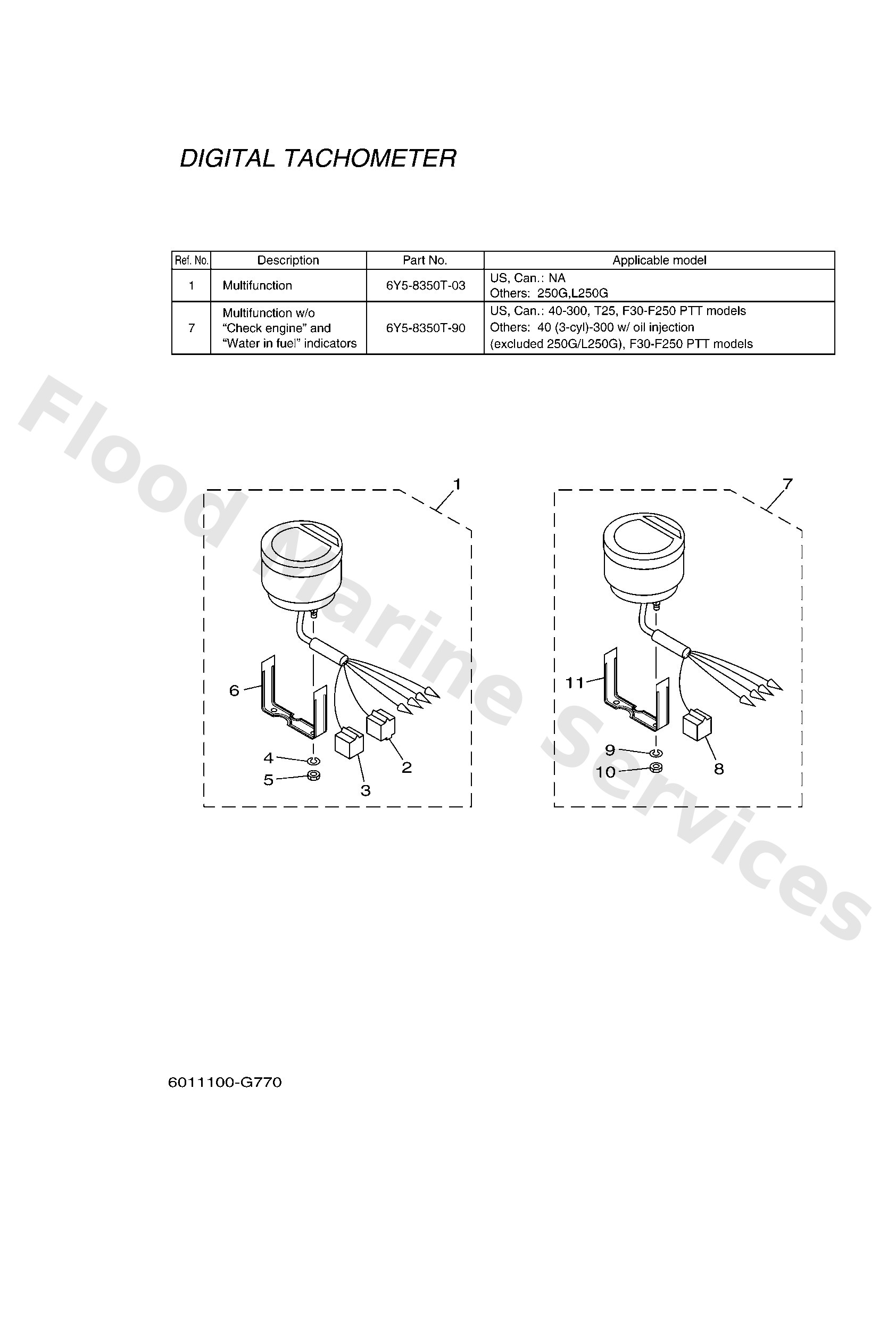

Diagram: METER 1
Parts List
Reference
Description
Price
1
6Y58350T03
Digital tachometer assembly
Loading…
↗
2
9E45004433
M-4-W
Housing, connector (m-4-w)
Loading…
↗
3
9E45004533
F-4-W
Housing, f-4-w(5pcs)
Loading…
↗
4
9299004100
Ybs67-4 washer, spring
Loading…
↗
5
9538004600
Nut,hex
Loading…
↗
6
6Y58355XT1
Bracket, meter 1
Loading…
↗
7
6Y58350T90
Tachometer assembly
Loading…
↗
