L250GETO (2010)
METER 2

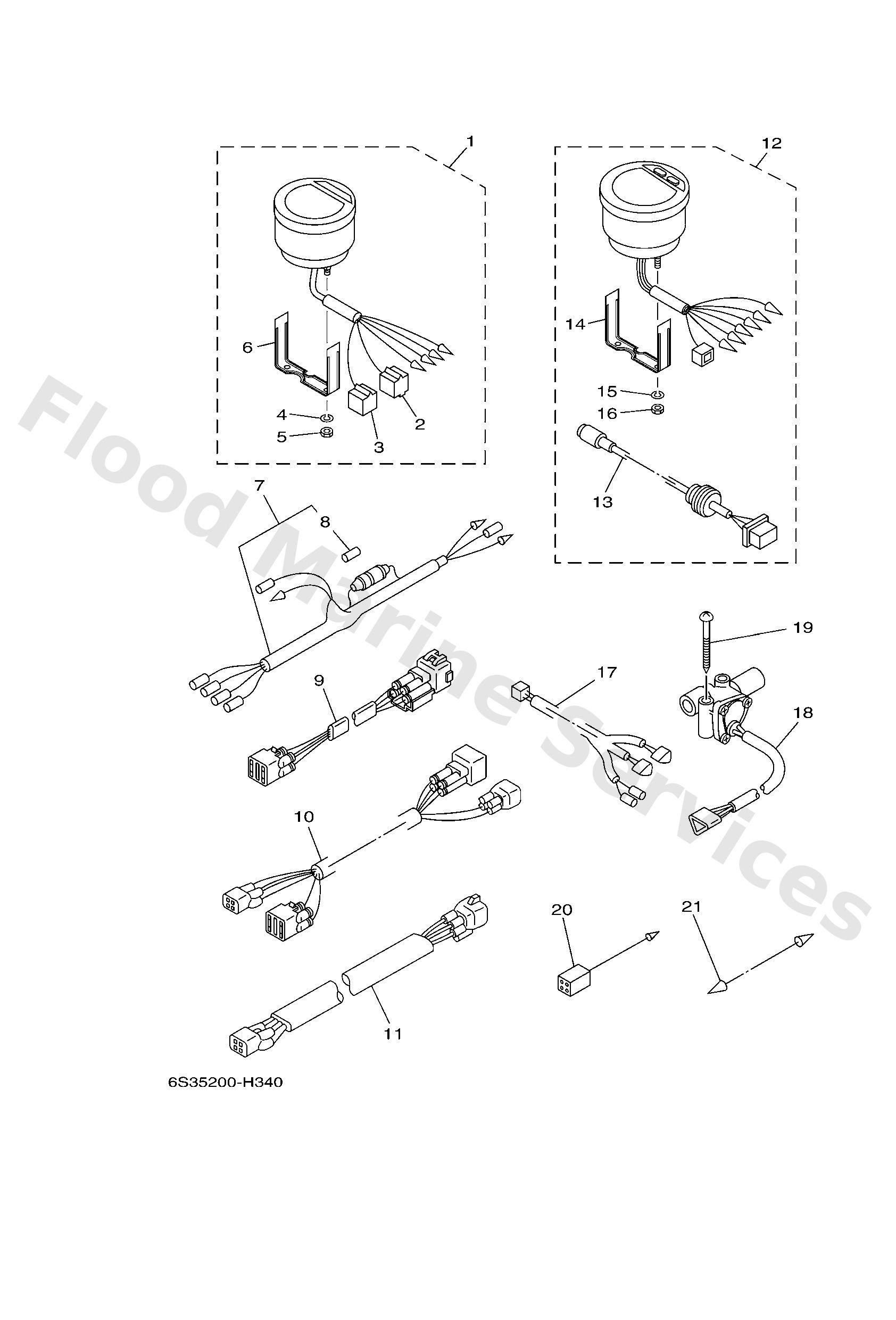

Diagram: METER 2
Parts List
Reference
Description
Price
1
6Y58350T03
AP
Digital tachometer assembly
Loading…
↗
2
9E45004433
M-4-W
Housing, connector (m-4-w)
Loading…
↗
3
9E45004533
F-4-W
Housing, f-4-w(5pcs)
Loading…
↗
4
9299004100
Ybs67-4 washer, spring
Loading…
↗
5
9538004600
Nut,hex
Loading…
↗
6
6Y58355XT1
Bracket, meter 1
Loading…
↗
7
6Y58355300
AP
Wire, lead (l=2.5m)
Loading…
↗
8
1E68215100
Fuse (10a)
Loading…
↗
9
6R38252180
AP CAR,CHN,MEX 4P,8M
Wire, lead (for tacho., 8m)
Loading…
↗
10
6R38255380
AP CAR,CHN,MEX (4P)
Wire, lead
Loading…
↗
10
68F8255390
AP EXCEPT CAR,CHN,MEX
Extension, wire lead (9m)
Loading…
↗
11
6R38255330
AP CAR,CHN,MEX (4P)
Wire, lead
Loading…
↗
12
6Y58350F00
AP EXCEPT CAR,CHN,MEX
Fuel meter movement assembly
Loading…
↗
13
6Y587122S0
Cord assembly 1
Loading…
↗
17
6Y583553F1
AP EXCEPT CAR,CHN,MEX
Wire, lead
Loading…
↗
18
6Y58575202
AP EXCEPT CAR,CHN,MEX
Sender unit assembly, fuel meter
Loading…
↗
19
9015806003
AP EXCEPT CAR,CHN,MEX
Screw, wood
Loading…
↗
20
6Y58211700
AP EXCEPT CAR,CHN,MEX
Wire, lead
Loading…
↗
21
7038253100
AP EXCEPT CAR,CHN,MEX
Wire, lead
Loading…
↗
